NJG1157PCD-TE1 - Nisshinbo

Description: RF Front End GPS and GLONASS FEM GNSS 1.5 to 3.3V

Download NJG1157PCD-TE1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

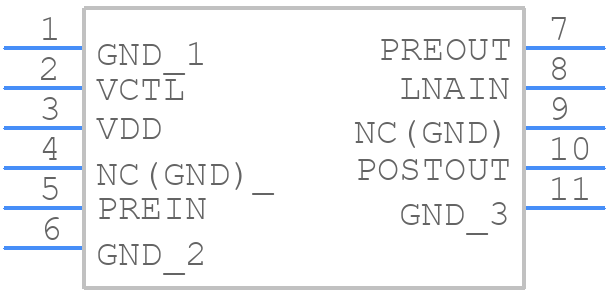

NJG1157PCD-TE1 - Nisshinbo - PCB symbol
click to zoom
PCB Footprints
NJG1157PCD-TE1 - Nisshinbo PCB footprint - Other - Other - HFFP10-CD_2023
click to zoom
3D Models
NJG1157PCD-TE1 - Nisshinbo - 3D model - Other - HFFP10-CD_2023
click to zoom

NJG1157PCD-TE1 Details

  • Manufacturer Part Number:

    NJG1157PCD-TE1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HFFP-10

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nisshinbo Micro Devices

  • Additional Feature:

    HEAT SINK AVAILABLE

  • JESD-30 Code:

    S-XDMA-N10

  • Length:

    2.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Packing Method:

    TR

  • Seated Height-Max:

    0.63 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2.5 mm

NJG1157PCD-TE1 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for NJG1157PCD-TE1 is a 6-pin SOT23 package with a minimum pad size of 0.8mm x 0.8mm and a thermal pad size of 2.5mm x 2.5mm.
  • To ensure the stability of the output voltage, it is recommended to use a 10uF ceramic capacitor at the output pin and a 1uF ceramic capacitor at the input pin, and to keep the input voltage within the recommended range of 2.5V to 5.5V.
  • The maximum power dissipation of NJG1157PCD-TE1 is 250mW, and it is recommended to keep the junction temperature below 125°C to ensure reliable operation.
  • Yes, NJG1157PCD-TE1 can be used in high-temperature applications up to 125°C, but it is recommended to derate the power dissipation according to the temperature derating curve provided in the datasheet.
  • To reduce the noise and ripple in the output voltage, it is recommended to use a 10uF ceramic capacitor at the output pin, and to keep the input voltage within the recommended range of 2.5V to 5.5V. Additionally, using a noise filter capacitor at the input pin can also help to reduce the noise and ripple.
