A recommended PCB layout for optimal thermal performance would be to use a thermal pad on the bottom of the package, connected to a large copper area on the PCB. This helps to dissipate heat efficiently. Additionally, it's recommended to use a 4-layer PCB with a solid ground plane to reduce thermal resistance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range (up to 125°C) and ensure proper heat dissipation. Additionally, consider using a heat sink or thermal interface material to reduce the thermal resistance between the device and the PCB.
The recommended soldering conditions for the NJM064M are: peak temperature of 260°C, soldering time of 10 seconds or less, and a soldering iron temperature of 350°C or less. It's also recommended to use a solder with a melting point of 217°C or higher.
To handle ESD protection during handling and assembly, it's recommended to use an ESD wrist strap or mat, and to ensure that all equipment and tools are properly grounded. Additionally, consider using ESD-protective packaging and handling the devices by the body or leads, rather than the pins.
The recommended storage conditions for the NJM064M are: temperature range of -40°C to 125°C, humidity of 60% or less, and storage in a dry, clean environment. It's also recommended to store the devices in their original packaging or in a shielded bag to prevent ESD damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NJM064M Overview

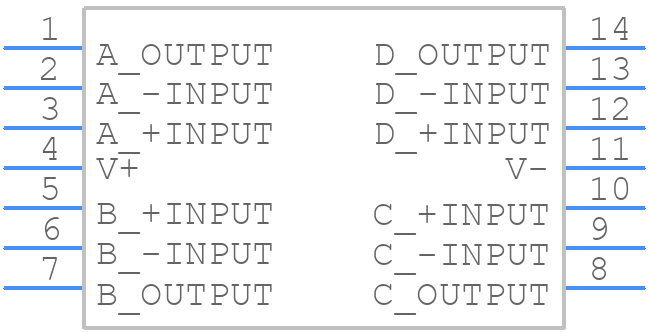

Use the download button to access the NJM064M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NJM06,
or try a keyword search, such as Operational Amplifiers
