NJM2058D - Nisshinbo

Description: Operational Amplifiers - Op Amps Quad

Download NJM2058D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

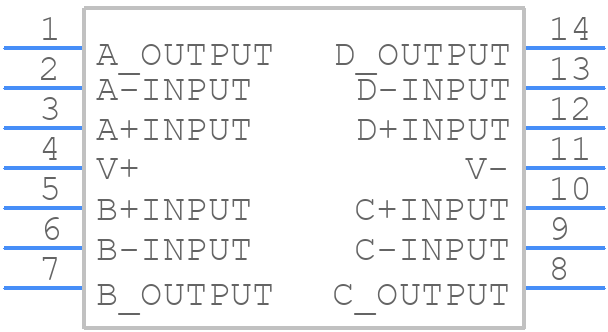

NJM2058D - Nisshinbo - PCB symbol
click to zoom
PCB Footprints

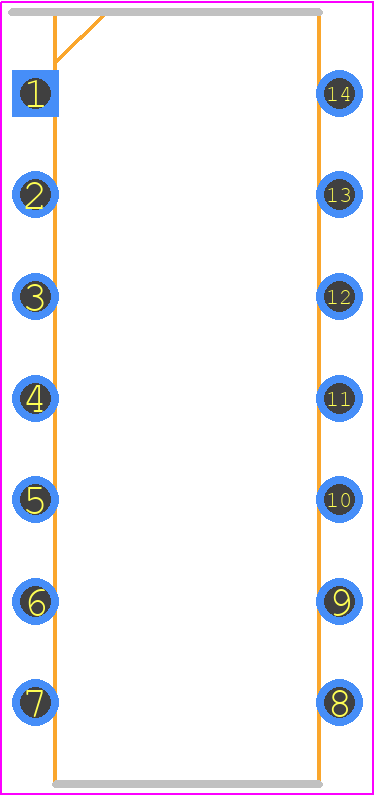

NJM2058D - Nisshinbo PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - DIP14
click to zoom
3D Models
NJM2058D - Nisshinbo - 3D model - Dual-In-Line Packages - DIP14
click to zoom

NJM2058D Details

  • Manufacturer Part Number:

    NJM2058D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nisshinbo Micro Devices

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.5 µA

  • Bias Current-Max (IIB) @25C:

    0.5 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e6

  • Length:

    19 mm

  • Low-Offset:

    NO

  • Neg Supply Voltage Limit-Max:

    -18 V

  • Neg Supply Voltage-Nom (Vsup):

    -15 V

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.7 mm

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    11.3 mA

  • Supply Voltage Limit-Max:

    18 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Min:

    19952.6

  • Width:

    7.62 mm

NJM2058D Frequently Asked Questions (FAQs)

  • A good PCB layout for NJM2058D involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a shielded inductor and to keep the switching node (pin 3) away from sensitive analog circuits.
  • To ensure stable operation of NJM2058D in high-temperature environments, it's essential to follow proper thermal design guidelines. This includes providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device's thermal shutdown feature can be used to prevent damage from overheating.
  • Although the datasheet doesn't specify a maximum voltage for the enable pin, it's generally recommended to keep it within the range of 0 to VCC (5V) to ensure proper operation. Applying a voltage higher than VCC may cause damage to the device.
  • NJM2058D is not specifically designed or tested for radiation hardness, so it's not recommended for use in high-radiation environments. If radiation hardness is a requirement, it's best to choose a device that is specifically designed and qualified for such applications.
  • To troubleshoot issues with NJM2058D, start by verifying the PCB layout and ensuring that it meets the recommended guidelines. Check for proper decoupling, correct component values, and adequate heat sinking. Use an oscilloscope to monitor the device's output and input signals, and look for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
