A good PCB layout for NJM2058M involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the IC close to the power supply. Additionally, it's recommended to use a ferrite bead or a 10uF capacitor in series with the power supply to filter out high-frequency noise.
To ensure the NJM2058M operates within its recommended operating temperature range of -40°C to 85°C, it's essential to provide adequate heat dissipation. This can be achieved by using a heat sink, ensuring good airflow, and avoiding high-power dissipation components nearby.
The maximum allowed voltage on the input pins of NJM2058M is VCC + 0.3V. Exceeding this voltage may cause damage to the IC. It's recommended to use input voltage limiting resistors or clamping diodes to prevent overvoltage conditions.
While NJM2058M is a general-purpose op-amp, it's not specifically designed for high-reliability or automotive applications. For such applications, it's recommended to use op-amps with higher reliability ratings, such as those with AEC-Q100 qualification or MIL-STD-883 compliance.
To troubleshoot common issues with NJM2058M, start by checking the PCB layout, power supply, and input/output connections. Ensure that the IC is properly decoupled, and the input signals are within the recommended range. Use an oscilloscope to analyze the output waveform and identify any signs of oscillation or instability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NJM2058M Overview

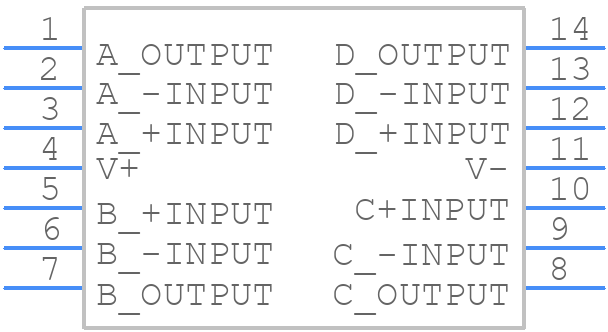

Use the download button to access the NJM2058M schematic symbol, PCB footprint, and 3D model.
