A good PCB layout for NJM2113D involves separating the analog and digital grounds, using a solid ground plane, and placing the IC close to the power supply. Additionally, it's recommended to use a ferrite bead or a 10uF capacitor in series with the power supply to filter out high-frequency noise.
To ensure the stability of the NJM2113D output voltage, it's essential to use a stable input voltage, decouple the input and output with capacitors, and avoid overloading the output. Additionally, the output voltage can be stabilized by adding a capacitor (e.g., 10uF) in parallel with the output resistor.
The maximum power dissipation of NJM2113D is dependent on the ambient temperature and the thermal resistance of the PCB. According to the datasheet, the maximum power dissipation is 1.5W at an ambient temperature of 25°C. However, it's recommended to derate the power dissipation based on the actual operating conditions.
NJM2113D is rated for operation up to 85°C, but its performance may degrade at higher temperatures. If you need to operate the device in a high-temperature environment, it's recommended to derate the power dissipation and ensure good heat dissipation through the PCB and surrounding components.
To troubleshoot issues with NJM2113D, start by checking the input voltage, output load, and PCB layout. Ensure that the input voltage is stable and within the recommended range, and that the output is not overloaded. Check for any signs of oscillation or instability, and verify that the device is properly decoupled. If the issue persists, consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NJM2113D Overview

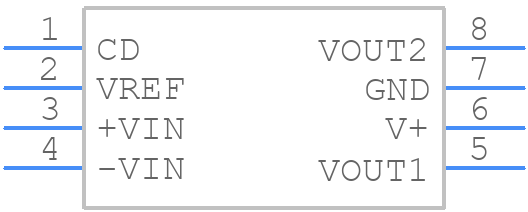

Use the download button to access the NJM2113D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NJM21,
or try a keyword search, such as Audio/Video Amplifiers
