NJM2113M - Nisshinbo

Description: Amplifier IC 1-Channel (Mono) Class AB 8-DMP

Download NJM2113M Model

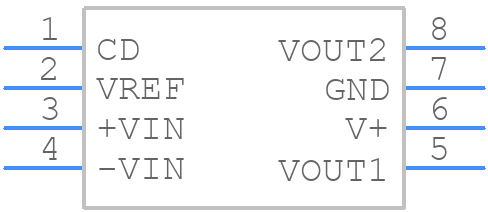

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NJM2113M - Nisshinbo PCB footprint - Small Outline Packages - Small Outline Packages - DMP8_2022
click to zoom
3D Models
NJM2113M - Nisshinbo  - 3D model - Small Outline Packages - DMP8_2022
click to zoom

NJM2113M Details

  • Manufacturer Part Number:

    NJM2113M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nisshinbo Micro Devices

  • YTEOL:

    6

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Harmonic Distortion:

    10%

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e6

  • Length:

    5 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    75 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Power-Nom:

    0.4 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5 mm

NJM2113M Frequently Asked Questions (FAQs)

  • A good PCB layout for NJM2113M involves keeping the input and output traces separate, using a ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a shielded inductor and to keep the switching node (pin 3) away from sensitive analog circuits.
  • To ensure stable operation of NJM2113M in high-temperature environments, it's essential to provide adequate heat dissipation. This can be achieved by using a heat sink, ensuring good airflow, and keeping the device away from other heat sources. Additionally, the device's power dissipation should be calculated and kept within the recommended limits.
  • Although the datasheet doesn't specify a maximum voltage for the enable pin, it's generally recommended to keep it within the VCC voltage range (up to 15V) to ensure reliable operation and prevent damage to the device.
  • Yes, NJM2113M can be used in switching regulators with high-frequency switching signals. However, it's essential to ensure that the device's switching frequency is within the recommended range (up to 500 kHz) and that the layout and component selection are optimized for high-frequency operation.
  • To troubleshoot issues with NJM2113M, start by checking the PCB layout, component selection, and soldering quality. Ensure that the input and output capacitors are of good quality and properly sized. Use an oscilloscope to measure the output voltage and current, and check for signs of oscillation or instability. If the issue persists, consult the datasheet and application notes for guidance.
