- Part Number NJM2750M
- Manufacturer Nisshinbo
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - DMP16
- Released Date Aug 10, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NJM2750M Details
-
Manufacturer Part Number:
NJM2750M
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
12 Weeks
-
Manufacturer:
Nisshinbo Micro Devices
-
YTEOL:
0
-
Consumer IC Type:
CONSUMER CIRCUIT
-
JESD-30 Code:
R-PDSO-G16
-
JESD-609 Code:
e6
-
Length:
10 mm
NJM2750M Frequently Asked Questions (FAQs)
-
A good PCB layout for NJM2750M involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a shielded inductor and to keep the switching node (pin 3) away from sensitive analog circuits.
-
To ensure stable operation of NJM2750M in high-temperature environments, it's essential to follow proper thermal design guidelines. This includes providing adequate heat sinking, using a thermally conductive PCB material, and keeping the device away from heat sources. Additionally, the device's power dissipation should be calculated and kept within the recommended limits.
-
The maximum allowable voltage on the EN (enable) pin of NJM2750M is 6V. Exceeding this voltage may damage the device. It's recommended to use a voltage limiter or a resistor divider network to ensure the EN pin voltage remains within the recommended range.
-
NJM2750M is not specifically designed for high-radiation environments. If your design requires a high level of radiation hardness, it's recommended to consult with Nisshinbo Micro Devices or consider using a radiation-hardened equivalent device.
-
To troubleshoot issues with NJM2750M, start by verifying the PCB layout and ensuring that the device is properly soldered. Check the input and output voltage levels, and verify that the device is operating within the recommended specifications. Use an oscilloscope to observe the switching node and output voltage waveforms, and consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
System Verified
NJM2750M Overview

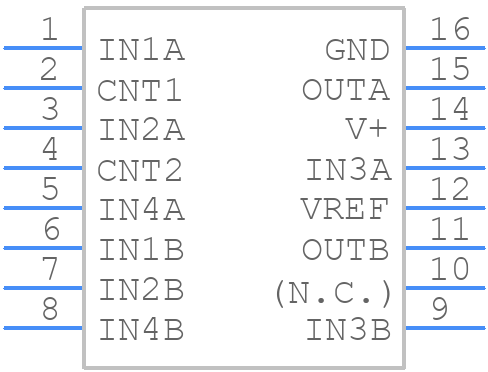

Use the download button to access the NJM2750M schematic symbol, PCB footprint, and 3D model.
