A recommended PCB layout for NJM2783V-TE1 is to keep the input and output traces as short as possible, and to use a solid ground plane to reduce EMI. Additionally, it's recommended to place a 10uF capacitor between the VIN and GND pins to filter out high-frequency noise.
To ensure the stability of the output voltage in NJM2783V-TE1, it's recommended to use a minimum output capacitance of 10uF with an ESR of 1 ohm or less. Additionally, the input voltage should be stable and within the recommended range, and the device should be operated within the recommended temperature range.
Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and to prevent damage to the device.
While NJM2783V-TE1 is rated for operation up to 85°C, it's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation. Additionally, the device should be mounted on a heat sink to dissipate heat effectively.
To troubleshoot issues with NJM2783V-TE1, check the input voltage and current, output voltage and current, and the device's operating temperature. Verify that the device is properly soldered and that the PCB layout is correct. Check for any signs of physical damage or overheating, and consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NJM2783V-TE1 Overview

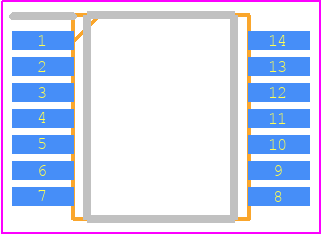

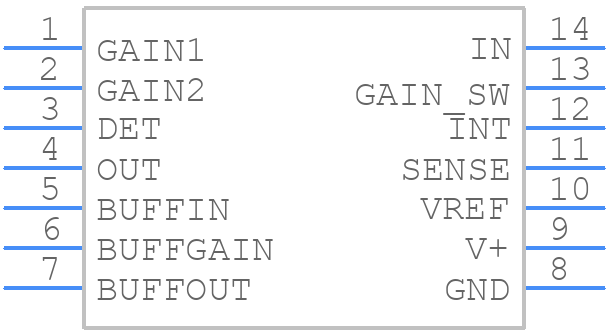

Use the download button to access the NJM2783V-TE1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NJM27,
or try a keyword search, such as Audio/Video Amplifiers
