A good PCB layout for the NJM3414AD involves keeping the input and output traces short, using a ground plane, and placing decoupling capacitors close to the power pins. A 4-layer PCB with a dedicated ground plane is recommended.
The NJM3414AD has a built-in ESD protection diode, but additional protection measures can be taken. Use ESD-resistant handling procedures, and consider adding external ESD protection devices, such as TVS diodes or ESD arrays, to the PCB design.
The maximum power dissipation for the NJM3414AD is dependent on the package type and ambient temperature. For the DIP-8 package, the maximum power dissipation is 500mW at 25°C. For the SOP-8 package, it is 300mW at 25°C. Ensure proper heat sinking and thermal management to prevent overheating.
The NJM3414AD is rated for operation up to 85°C, but its performance may degrade at higher temperatures. If your application requires operation above 85°C, consider using a more temperature-resistant op-amp or taking additional thermal management measures.
Choose decoupling capacitors with a low equivalent series resistance (ESR) and a high self-resonant frequency. A 10nF to 100nF ceramic capacitor with an X7R or X5R dielectric is a good starting point. Place the capacitors close to the power pins and use a ground plane to minimize inductance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NJM3414AD Overview

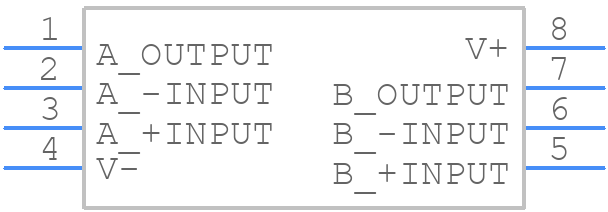

Use the download button to access the NJM3414AD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NJM34,
or try a keyword search, such as Operational Amplifiers
