NJM4151M - Nisshinbo

Description: Voltage to Frequency & Frequency to Voltage V-F/F-V Converter

Download NJM4151M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

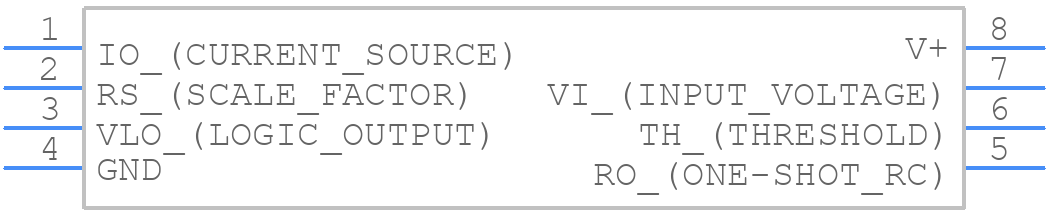

Symbol
NJM4151M - Nisshinbo - PCB symbol
click to zoom
PCB Footprints
NJM4151M - Nisshinbo PCB footprint - Small Outline Packages - Small Outline Packages - DMP8_2022
click to zoom
3D Models
NJM4151M - Nisshinbo - 3D model - Small Outline Packages - DMP8_2022
click to zoom

NJM4151M Details

  • Manufacturer Part Number:

    NJM4151M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.50

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Nisshinbo Micro Devices

  • YTEOL:

    10

  • Converter Type:

    VOLTAGE TO FREQUENCY CONVERTER

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e6

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    0.1 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Positive Input Voltage-Max:

    10 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    7.5 mA

  • Supply Voltage-Max:

    22 V

  • Supply Voltage-Min:

    8 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5 mm

NJM4151M Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for NJM4151M is 2.7V to 5.5V.
  • To ensure stable operation in high-temperature environments, it is recommended to use a heat sink and ensure good thermal conductivity between the device and the heat sink. Additionally, reducing the power supply voltage and minimizing the output current can help reduce the device's temperature.
  • The maximum output current that NJM4151M can provide is 1A. However, it is recommended to limit the output current to 500mA for stable operation.
  • To protect NJM4151M from overvoltage and undervoltage conditions, it is recommended to use a voltage regulator with overvoltage protection (OVP) and undervoltage protection (UVP) features.
  • To minimize EMI, it is recommended to use a multi-layer PCB with a solid ground plane, keep the input and output traces short and separate, and use a common-mode choke or ferrite bead to filter the output.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NJM4151M Overview

Use the download button to access the NJM4151M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NJM41, or try a keyword search, such as Analog Special Function Converters
