NJM78LR05DM - Nisshinbo

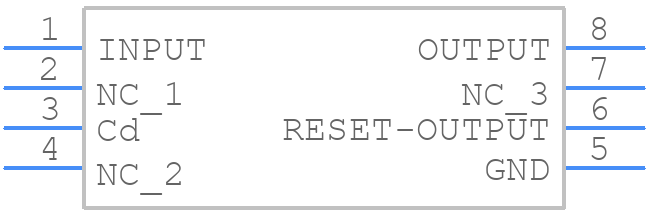

NJM78LR05DM Details

• Manufacturer Part Number:

  NJM78LR05DM

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  DMP-8

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Nisshinbo Micro Devices

• YTEOL:

  5.2

• Adjustability:

  FIXED

• Dropout Voltage1-Max:

  2.2 V

• Dropout Voltage1-Nom:

  1.5 V

• Input Voltage Absolute-Max:

  20 V

• Input Voltage-Max:

  18 V

• Input Voltage-Min:

  7.5 V

• JESD-30 Code:

  S-PDSO-G8

• JESD-609 Code:

  e6

• Length:

  5 mm

• Line Regulation-Max:

  0.065%

• Load Regulation-Max:

  0.06%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current1-Max:

  0.1 A

• Output Voltage1-Max:

  5.2 V

• Output Voltage1-Min:

  4.8 V

• Output Voltage1-Nom:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP8,.3

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

• Seated Height-Max:

  2 mm

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Terminal Finish:

  TIN BISMUTH

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Voltage Tolerance-Max:

  4%

• Width:

  5 mm
