NJU7660AM-TE1 - Nisshinbo

Description: Switching Voltage Regulators CMOS 10.5V Converter 5kHz 55ohm 40uA 10u

Download NJU7660AM-TE1 Model
Schematic

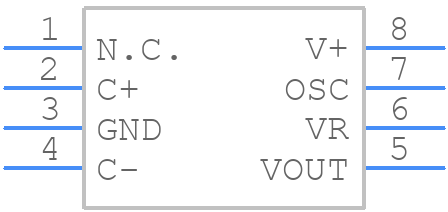

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NJU7660AM-TE1 - Nisshinbo PCB footprint - Small Outline Packages - Small Outline Packages - DMP8_2022
click to zoom
3D Models
NJU7660AM-TE1 - Nisshinbo  - 3D model - Small Outline Packages - DMP8_2022
click to zoom

NJU7660AM-TE1 Details

  • Manufacturer Part Number:

    NJU7660AM-TE1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Nisshinbo Micro Devices

  • Input Voltage-Max:

    10 V

  • Input Voltage-Min:

    1.5 V

  • JESD-30 Code:

    R-PDSO-G8

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL
