NL17SZ125DTT1G - onsemi

Description: 24 mA Balanced Output Sink and Source Capability; Extremely High Speed: tPD 2.6 ns (typical) at VCC = 5 V; Over Voltage Tolerant Inputs and Outputs; LVTTL Compatible - Interface Capability With 5 V TTL Logic with VCC = 3 V; Designed for 1.65 V to 5.5 V VCC Operation; LVCMOS Compatible; Near Zero Static Supply Current Substantially Reduces System Power Requirements; 3-State OE Input is Active-Low; Replacement for NC7SZ125; Chip Complexity = 36 FETS

Download NL17SZ125DTT1G Model

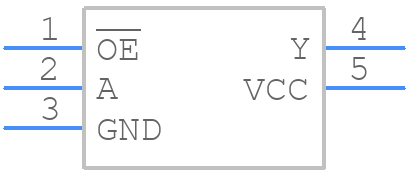

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NL17SZ125DTT1G - onsemi PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - TSOP-5 Case 483 Issue M
click to zoom
3D Models
NL17SZ125DTT1G - onsemi  - 3D model - SOT23 (5-Pin) - TSOP-5 Case 483 Issue M
click to zoom

NL17SZ125DTT1G Details

  • Manufacturer Part Number:

    NL17SZ125DTT1G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSOP-5

  • Package Description:

    TSOP-5

  • Pin Count:

    5

  • Manufacturer Package Code:

    483

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    LVC/LCX/Z

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.01 mA

  • Prop. Delay@Nom-Sup:

    6 ns

  • Propagation Delay (tpd):

    10.5 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    TTL

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.2 mm

NL17SZ125DTT1G Frequently Asked Questions (FAQs)

  • A good PCB layout for NL17SZ125DTT1G involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a shielded cable for the output and to keep the device away from other noise-sensitive components.
  • To ensure proper power-up and power-down of NL17SZ125DTT1G, it's recommended to follow a slow power-up and power-down sequence, with a ramp-up time of at least 1ms and a ramp-down time of at least 2ms. Additionally, it's recommended to use a power-on reset circuit to ensure the device is properly reset during power-up.
  • The maximum operating temperature range for NL17SZ125DTT1G is -40°C to 125°C. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
  • To handle ESD protection for NL17SZ125DTT1G, it's recommended to use ESD protection devices such as TVS diodes or ESD arrays on the input and output pins. Additionally, it's recommended to follow proper handling and storage procedures to prevent ESD damage during manufacturing and assembly.
  • The recommended storage condition for NL17SZ125DTT1G is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 60%. It's also recommended to store the device in its original packaging or in a shielded bag to prevent ESD damage.
