NL37WZ07USG - onsemi

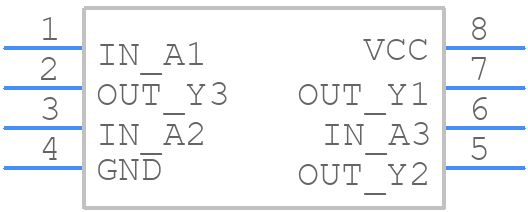

NL37WZ07USG Details

• Manufacturer Part Number:

  NL37WZ07USG

• Brand Name:

  onsemi

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  US8

• Pin Count:

  8

• Manufacturer Package Code:

  493-01

• Country Of Origin:

  Mainland China, Malaysia

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  10 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  7.45

• Family:

  LVC/LCX/Z

• JESD-30 Code:

  R-PDSO-G8

• Length:

  2.3 mm

• Load Capacitance (CL):

  50 pF

• Logic IC Type:

  BUFFER

• Max I(ol):

  0.032 A

• Moisture Sensitivity Level:

  1

• Number of Functions:

  3

• Number of Inputs:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Output Characteristics:

  OPEN-DRAIN

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VSSOP

• Package Equivalence Code:

  TSSOP8,.12,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  0.01 mA

• Prop. Delay@Nom-Sup:

  6 ns

• Propagation Delay (tpd):

  9.5 ns

• Qualification Status:

  Not Qualified

• Schmitt Trigger:

  NO

• Seated Height-Max:

  0.9 mm

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  1.65 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Nickel/Gold/Palladium (Ni/Au/Pd)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  2 mm
