NL3HS3124AMNTWG - onsemi

Description: 2 Bidirectional Channel, 2 : 1 Differential Multiplexer/Demultiplexer; High−speed Signal Switching for 10 Gbps Applications; High Bandwidth: > 6.3 GHz at −3 dB; Low Insertion Loss: ♦ −0.5 dB at 100 MHz ♦ −2.8 dB at 4.0 GHz; Low Return Loss: −9.27 dB at 4 GHz; Low Crosstalk: −35 dB at 4 GHz; Low Off−state Isolation: −19 dB at 4 GHz; Low Intra−pair Skew: 5 ps Typical; Low Inter−pair Skew: 35 ps Maximum; VDD Operating Range: 3.0 V to 3.6 V; Shutdown Pin (SD) for Power−saving Mode; Standby Current less than 1 µ

Download NL3HS3124AMNTWG Model

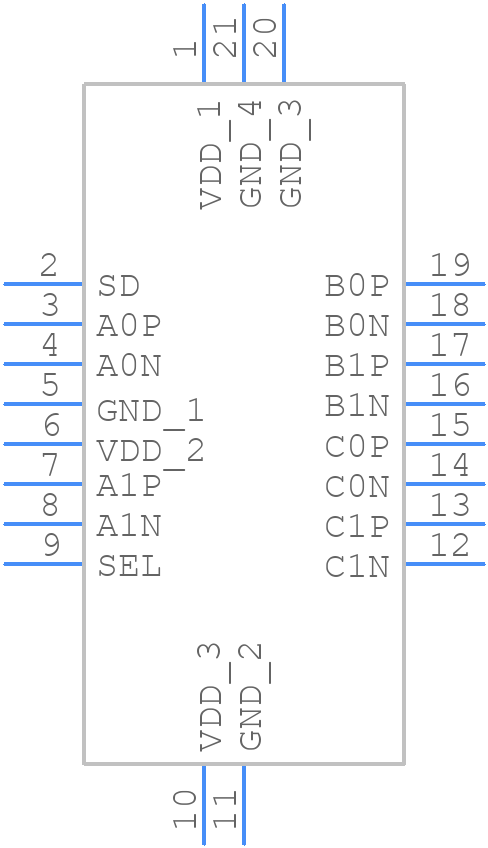

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NL3HS3124AMNTWG - onsemi PCB footprint - Other - Other - QFN20 2.5x4.5, 0.5P CASE 485FK ISSUE O
click to zoom
3D Models
NL3HS3124AMNTWG - onsemi  - 3D model - Other - QFN20 2.5x4.5, 0.5P CASE 485FK ISSUE O
click to zoom

NL3HS3124AMNTWG Details

  • Manufacturer Part Number:

    NL3HS3124AMNTWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN-20

  • Package Description:

    QFN-20

  • Manufacturer Package Code:

    485FK

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2016-12-16

  • Manufacturer:

    onsemi

  • YTEOL:

    6.98

  • Analog IC - Other Type:

    DIFFERENTIAL MULTIPLEXER

  • JESD-30 Code:

    R-XQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO/NC

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    50 ns

  • Switch-on Time-Max:

    300 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

NL3HS3124AMNTWG Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for NL3HS3124AMNTWG is 1.65V to 3.6V.
  • To ensure signal integrity, use a low-impedance output driver, minimize trace lengths, and use a solid ground plane to reduce noise and crosstalk.
  • No, NL3HS3124AMNTWG is not recommended for use in 5V systems. The maximum recommended operating voltage is 3.6V.
  • The NL3HS3124AMNTWG can support data rates up to 500 Mbps.
  • Power sequencing is not critical for NL3HS3124AMNTWG, but it's recommended to power up the device after the input signals are stable.
