NL3V4T244MU2TAG - onsemi

Description: Voltage Level Translator Unidirectional 1 Circuit 4 Channel 380Mbps 12-UQFN (1.7x2)

Download NL3V4T244MU2TAG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

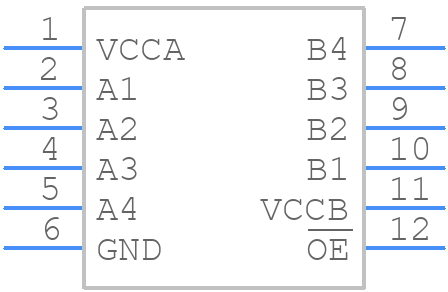

NL3V4T244MU2TAG - onsemi - PCB symbol
click to zoom
PCB Footprints
NL3V4T244MU2TAG - onsemi PCB footprint - Other - Other - UQFN12 1.7x2.0, 0.4P CASE 523AE ISSUE A_2025
click to zoom
3D Models
NL3V4T244MU2TAG - onsemi - 3D model - Other - UQFN12 1.7x2.0, 0.4P CASE 523AE ISSUE A_2025
click to zoom

NL3V4T244MU2TAG Details

  • Manufacturer Part Number:

    NL3V4T244MU2TAG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
