NL6010DCAE1D - Nisshinbo

Description: Low power, Zero-Drift, High EMC Performance Rail-to-Rail I/O, Operational Amplifier

Download NL6010DCAE1D Model
Schematic

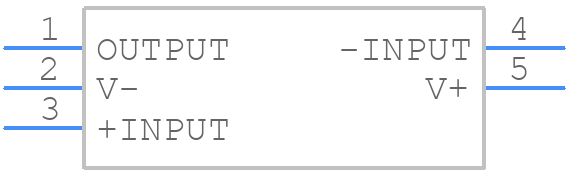

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NL6010DCAE1D - Nisshinbo PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - SOT-23-5-DC
click to zoom
3D Models
NL6010DCAE1D - Nisshinbo  - 3D model - SOT23 (5-Pin) - SOT-23-5-DC
click to zoom

NL6010DCAE1D Details

  • Manufacturer Part Number:

    NL6010DCAE1D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOT-23, 5 PIN

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Nisshinbo Micro Devices

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.0002 µA

  • Bias Current-Max (IIB) @25C:

    0.0002 µA

  • Common-mode Reject Ratio-Min:

    106 dB

  • Common-mode Reject Ratio-Nom:

    130 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    10 µV

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e6

  • Length:

    2.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.38 mm

  • Slew Rate-Nom:

    0.11 V/us

  • Supply Current-Max:

    0.027 mA

  • Supply Voltage Limit-Max:

    7 V

  • Supply Voltage-Nom (Vsup):

    2.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    260

  • Voltage Gain-Min:

    199526

  • Wideband:

    NO

  • Width:

    1.6 mm
