NLAS3158MNR2G - onsemi

Description: ON Semiconductor NLAS3158MNR2G, Dual Analogue Switch, 1.65 → 5.5 V, 12-Pin DFN

Download NLAS3158MNR2G Model

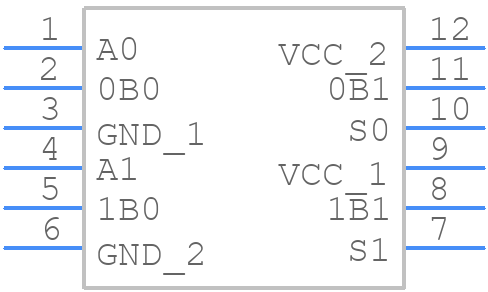

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLAS3158MNR2G - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - NLAS3158MNR2G
click to zoom
3D Models
NLAS3158MNR2G - onsemi  - 3D model - Small Outline No-lead - NLAS3158MNR2G
click to zoom

NLAS3158MNR2G Details

  • Manufacturer Part Number:

    NLAS3158MNR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN12 3.0*1.0, 0.5 MM Pitch

  • Package Description:

    QFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    485AG

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    38 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    SPDT

  • JESD-30 Code:

    R-XDSO-N12

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO/NC

  • Number of Channels:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    12

  • Off-state Isolation-Nom:

    55 dB

  • On-state Resistance Match-Nom:

    0.5 Ω

  • On-state Resistance-Max (Ron):

    24 Ω

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC12,.04,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    2.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    12.5 ns

  • Switch-on Time-Max:

    23 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1 mm
