- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for NLAS4053DR2G
- Part Number NLAS4053DR2G
- Manufacturer onsemi
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - SOIC-16 CASE751B-05
- Released Date Aug 26, 2015
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NLAS4053DR2G Details
-
Manufacturer Part Number:
NLAS4053DR2G
-
Brand Name:
onsemi
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC 16 LEAD
-
Package Description:
SOIC-16
-
Pin Count:
16
-
Manufacturer Package Code:
751B-05
-
Country Of Origin:
Philippines
-
HTS Code:
8542.39.00.60
-
Factory Lead Time:
4 Weeks
NLAS4053DR2G Frequently Asked Questions (FAQs)
-
A good PCB layout for the NLAS4053DR2G involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
-
To ensure proper biasing, connect the EN pin to a voltage source (e.g., VCC) through a pull-up resistor (e.g., 10 kΩ). The EN pin should be biased to a logic high (VCC) to enable the device. Additionally, ensure the input voltage (VIN) is within the recommended range (2.7 V to 5.5 V).
-
The maximum current the NLAS4053DR2G can handle depends on the input voltage and the output load. The device can handle up to 1 A of output current. To calculate the maximum current, use the formula: IOUT = (VIN - VOUT) / RDS(ON), where RDS(ON) is the on-state resistance of the internal switch.
-
To protect the NLAS4053DR2G from overvoltage and undervoltage conditions, use a voltage regulator or a voltage supervisor to regulate the input voltage (VIN) within the recommended range (2.7 V to 5.5 V). Additionally, consider adding overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage to the device.
-
To manage thermal performance, ensure good airflow around the device, and consider using a heat sink or a thermal pad to dissipate heat. The device has a thermal shutdown feature that turns off the internal switch when the junction temperature exceeds 150°C. Monitor the device temperature and adjust the thermal management strategy accordingly.
Trust Checks
Community Provided
System Verified
Community Approved
NLAS4053DR2G Overview

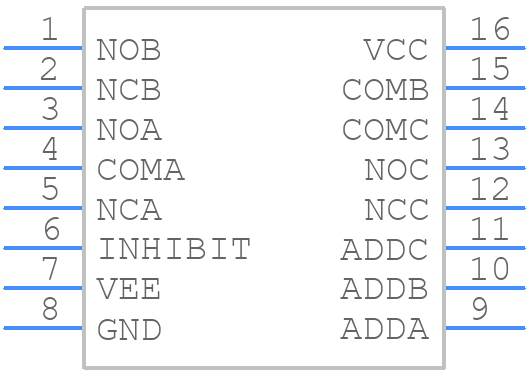

Use the download button to access the NLAS4053DR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NLAS4,
or try a keyword search, such as Multiplexers or Switches
