A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. The datasheet provides a recommended land pattern, but a more detailed layout guide can be found in the onsemi application note AND8325/D.
To ensure reliable operation at high temperatures, it's essential to follow the recommended derating curves for the device. Additionally, consider using a heat sink, and ensure good thermal contact between the device and the heat sink. A thermal interface material can also be used to improve heat transfer.
Exceeding the maximum junction temperature (Tj) can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
To protect the device from EOS, use a robust PCB design with adequate clearance and creepage distances, and ensure that the device is properly soldered. Additionally, consider using TVS diodes or other protection devices to absorb voltage transients and spikes.
The NLAS4053DTG is not hermetically sealed, so it's essential to take precautions when operating in high-humidity environments. Consider using conformal coating, potting, or other environmental protection methods to prevent moisture ingress and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NLAS4053DTG Overview

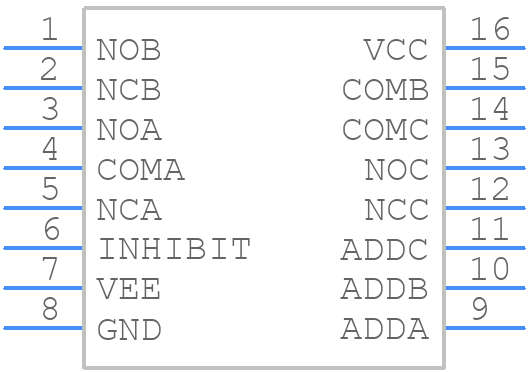

Use the download button to access the NLAS4053DTG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NLAS4,
or try a keyword search, such as Multiplexers or Switches
