A recommended PCB layout for optimal thermal performance would be to use a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and to place thermal vias under the device to dissipate heat effectively.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range, use a suitable thermal management system, and consider derating the device's power handling capabilities.
To prevent electrostatic discharge (ESD) damage, it's recommended to handle the device with ESD-protective equipment, use ESD-protected workbenches, and follow proper ESD-handling procedures during assembly and testing.
Yes, the NLAS44599MNR2G can be used in switching regulator applications, but it's essential to ensure that the device is operated within its recommended switching frequency range and to follow proper layout and design guidelines to minimize electromagnetic interference (EMI).
The recommended soldering conditions for the NLAS44599MNR2G are a peak temperature of 260°C, a soldering time of 10 seconds, and a soldering method that follows the IPC J-STD-020 standard.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NLAS44599MNR2G Overview

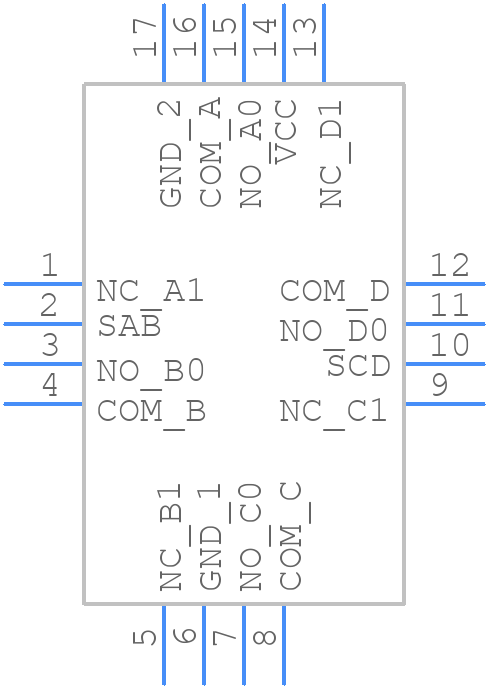

Use the download button to access the NLAS44599MNR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NLAS4,
or try a keyword search, such as Multiplexers or Switches
