Part Image

NLSV8T244DTR2G - onsemi

Description: Nonpreferential VCCA and VCCB Sequencing; VCCA and VCCB can be 0.9 V to 4.5 V; HighSpeed w/ Balanced Propagation Delay; Inputs and Outputs have OVT Protection to 4.5 V; Outputs at 3State until Active VCC is Reached; PowerOff Protection; Outputs Switch to 3State with VCCB at GND; UltraSmall Packaging: 4.0 mm x 2.0 mm UDFN20

Download NLSV8T244DTR2G Model

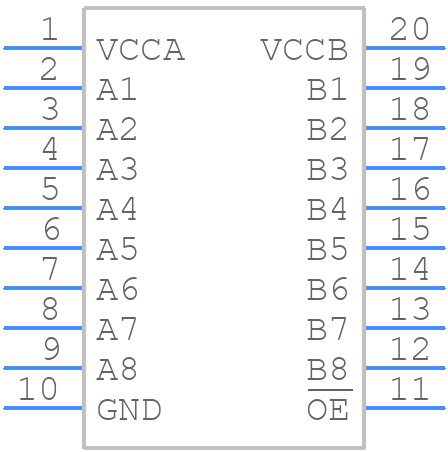

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

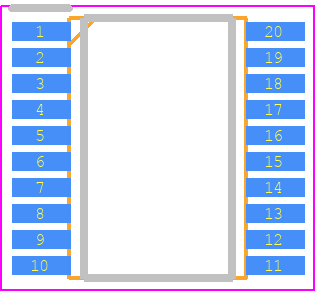

NLSV8T244DTR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - 19-213/GHC-YR1S2/3T
click to zoom
3D Models
NLSV8T244DTR2G - onsemi  - 3D model - Small Outline Packages - 19-213/GHC-YR1S2/3T
click to zoom

NLSV8T244DTR2G Details

  • Manufacturer Part Number:

    NLSV8T244DTR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP 20 LEAD

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    9.48

  • Country Of Origin:

    Mainland China, Malaysia

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Control Type:

    ENABLE LOW

  • Count Direction:

    BIDIRECTIONAL

  • Family:

    8T

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Load Capacitance (CL):

    15 pF

  • Logic IC Type:

    REGISTERED BUS TRANSCEIVER

  • Max I(ol):

    0.024 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    100 mA

  • Prop. Delay@Nom-Sup:

    3.3 ns

  • Propagation Delay (tpd):

    3.3 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    4.5 V

  • Supply Voltage-Min (Vsup):

    0.9 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

NLSV8T244DTR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for NLSV8T244DTR2G is 1.71V to 5.5V.
  • To ensure signal integrity, use a low-impedance PCB design, minimize trace lengths, and use termination resistors as needed. Also, ensure that the power supply is clean and stable.
  • The maximum data transfer rate supported by NLSV8T244DTR2G is up to 1 Gbps.
  • To handle thermal management, ensure good airflow around the device, use a heat sink if necessary, and avoid overheating the device.
  • The package type of NLSV8T244DTR2G is a 14-pin TSSOP (Thin Shrink Small Outline Package).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NLSV8T244DTR2G Overview

Use the download button to access the NLSV8T244DTR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NLSV8, or try a keyword search, such as Bus Driver/Transceivers
