A good PCB layout for the NLU3G17MUTAG involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
To ensure proper biasing, connect the VCC pin to a stable 3.3V power supply, and the VEE pin to a stable -3.3V power supply. The input common-mode voltage should be set to around 1.65V, and the output load should be impedance-matched to minimize reflections.
The NLU3G17MUTAG is specified to operate up to 3.2 GHz, but it can be used at higher frequencies with some degradation in performance. However, it's essential to consult with onsemi's application engineers to determine the feasibility of using the device at frequencies above 3.2 GHz.
The NLU3G17MUTAG has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking, such as a thermal pad or a heat sink attached to the package. The PCB should also be designed to dissipate heat efficiently.
The NLU3G17MUTAG has internal ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. The device should be handled in an ESD-controlled environment, and ESD-sensitive devices should be protected with ESD shielding bags or containers.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NLU3G17MUTAG Overview

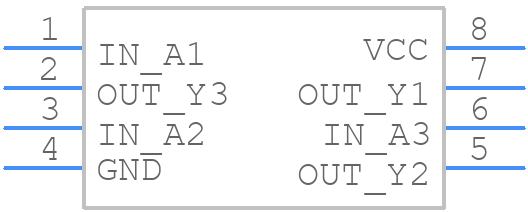

Use the download button to access the NLU3G17MUTAG schematic symbol, PCB footprint, and 3D model.
