NLV14001BDR2G - onsemi

Description: Capable of Driving Two Low-power TTL Loads or One Low-power Schottky TTL Load Over the Rated Temperature Range.; Pin-for-Pin Replacements for Corresponding CD4000 Series B Suffix Devices; All Outputs Buffered; Supply Voltage Range = 3.0 Vdc to 18 Vdc; Double Diode Protection on All Inputs Except: Triple Diode Protection on MC14011B and MC14081B; Pb-Free Packages are Available*

Download NLV14001BDR2G Model

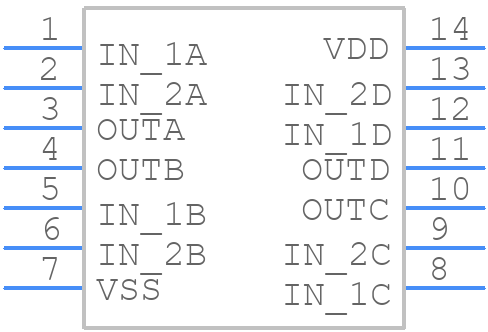

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLV14001BDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - NLV14001BDR2G
click to zoom
3D Models
NLV14001BDR2G - onsemi  - 3D model - Small Outline Packages - NLV14001BDR2G
click to zoom

NLV14001BDR2G Details

  • Manufacturer Part Number:

    NLV14001BDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14 NB

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    751A-03

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    NOR GATE

  • Max I(ol):

    0.004200000000000001 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    250 ns

  • Propagation Delay (tpd):

    250 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NLV14001BDR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal path short and direct to the heat sink or thermal pad.
  • To ensure reliable operation in high-temperature environments, follow the recommended operating temperature range, use a heat sink or thermal pad, and ensure good airflow around the device. Additionally, consider using thermal interface materials and following proper soldering and assembly techniques.
  • The recommended soldering conditions for the NLV14001BDR2G are: peak temperature of 260°C, soldering time of 10 seconds, and a soldering iron temperature of 350°C. It's also important to follow the recommended soldering profile and use a solder with a melting point above 217°C.
  • To handle ESD protection during handling and assembly, use an ESD wrist strap or mat, handle the device by the body or pins, avoid touching the pins or die, and store the device in an ESD-protective package. Additionally, follow proper assembly and soldering techniques to minimize the risk of ESD damage.
  • Operating the device beyond the recommended operating conditions can lead to reduced reliability, decreased performance, and increased risk of failure. It may also void the warranty and affect the device's compliance with regulatory standards.
