NLV14001BDTR2G - onsemi

Description: Capable of Driving Two Low-power TTL Loads or One Low-power Schottky TTL Load Over the Rated Temperature Range.; Pin-for-Pin Replacements for Corresponding CD4000 Series B Suffix Devices; All Outputs Buffered; Supply Voltage Range = 3.0 Vdc to 18 Vdc; Double Diode Protection on All Inputs Except: Triple Diode Protection on MC14011B and MC14081B; Pb-Free Packages are Available*

Download NLV14001BDTR2G Model

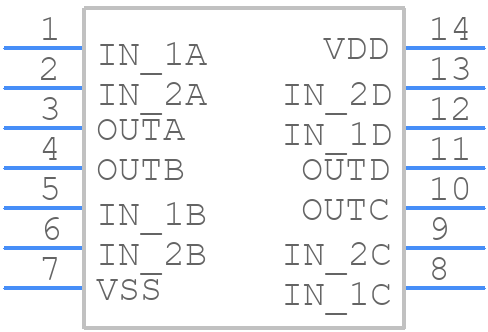

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLV14001BDTR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP−14 WB
click to zoom
3D Models
NLV14001BDTR2G - onsemi  - 3D model - Small Outline Packages - TSSOP−14 WB
click to zoom

NLV14001BDTR2G Details

  • Manufacturer Part Number:

    NLV14001BDTR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-14

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    948G

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    NOR GATE

  • Max I(ol):

    0.004200000000000001 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Inputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    250 ns

  • Propagation Delay (tpd):

    250 ns

  • Qualification Status:

    Not Qualified

  • Schmitt Trigger:

    NO

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

NLV14001BDTR2G Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to use a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and to place thermal vias under the device to dissipate heat effectively.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal management system, and consider derating the device's power dissipation according to the temperature derating curve provided in the datasheet.
  • To prevent electrostatic discharge (ESD) damage, it's recommended to follow proper handling and storage procedures, use ESD-protective packaging, and implement ESD protection circuits or devices on the PCB, such as TVS diodes or ESD arrays.
  • Yes, the NLV14001BDTR2G is qualified for automotive and high-reliability applications. However, it's essential to review the device's AEC-Q100 qualification and to consult with onsemi's application engineers to ensure the device meets the specific requirements of your application.
  • The recommended soldering conditions for the NLV14001BDTR2G are a peak temperature of 260°C, with a soldering time of 10-30 seconds. For rework, it's recommended to use a low-temperature soldering iron and to follow onsemi's rework guidelines to prevent damage to the device.
