NLV14024BDR2G - onsemi

Description: Pin-for-Pin Replacement for CD4024B; Output Transitions Occur on the Falling Edge of the Clock Pulse; Capable of Driving Two Low-power TTL Loads or One Low-power Schottky TTL Load Over the Rated Temperature Range; Diode Protection on All Inputs; Supply Voltage Range = 3.0 Vdc to 18 Vdc; Pb-Free Packages are Available*

Download NLV14024BDR2G Model

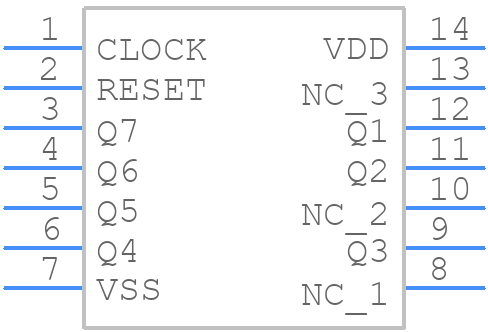

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLV14024BDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-14-2021
click to zoom
3D Models
NLV14024BDR2G - onsemi  - 3D model - Small Outline Packages - SOIC-14-2021
click to zoom

NLV14024BDR2G Details

  • Manufacturer Part Number:

    NLV14024BDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-14 NB

  • Package Description:

    SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    751A-03

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Additional Feature:

    INPUT PULSE FREQUENCY 4 MEGA HZ

  • Count Direction:

    UP

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Load Capacitance (CL):

    50 pF

  • Load/Preset Input:

    NO

  • Logic IC Type:

    BINARY COUNTER

  • Max Frequency@Nom-Sup:

    1000000 Hz

  • Max I(ol):

    0.004200000000000001 A

  • Mode of Operation:

    ASYNCHRONOUS

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    7

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    2000 ns

  • Propagation Delay (tpd):

    2000 ns

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trigger Type:

    NEGATIVE EDGE

  • Width:

    3.9 mm

  • fmax-Min:

    4 MHz

NLV14024BDR2G Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance is to use a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and to place thermal vias under the device to dissipate heat effectively.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal management system, and consider derating the device's power dissipation according to the temperature derating curve provided in the datasheet.
  • To prevent electrostatic discharge (ESD) damage, it's recommended to handle the device with ESD-protective equipment, use ESD-protected workbenches, and follow proper ESD-handling procedures. Additionally, consider adding external ESD protection devices, such as TVS diodes, to the circuit design.
  • Yes, the NLV14024BDR2G is AEC-Q100 qualified, making it suitable for automotive applications. However, it's essential to ensure that the device meets the specific requirements of the automotive system, including temperature range, voltage, and reliability.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback network. Verify that the device is properly configured, and the output voltage is within the specified range. Use an oscilloscope to monitor the output voltage and identify any oscillations or noise.
