NLV14532BDR2G - onsemi

Description: Diode Protection on All Inputs; Capable of Driving Two Low-power TTL Loads or One Low-Power Schottky TTL Load over the Rated Temperature Range; Supply Voltage Range = 3.0 Vdc to 18 Vdc; Pb-Free Packages are Available

Download NLV14532BDR2G Model

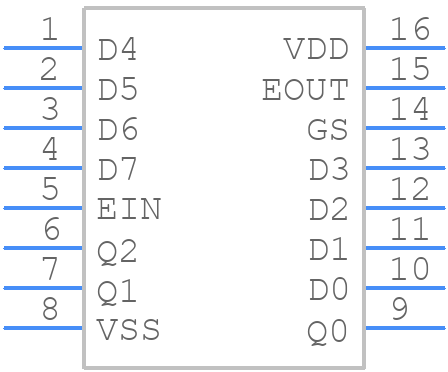

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLV14532BDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−16 CASE 751B−05 ISSUE K
click to zoom
3D Models
NLV14532BDR2G - onsemi  - 3D model - Small Outline Packages - SOIC−16 CASE 751B−05 ISSUE K
click to zoom

NLV14532BDR2G Details

  • Manufacturer Part Number:

    NLV14532BDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC 16 LEAD

  • Pin Count:

    16

  • Manufacturer Package Code:

    751B-05

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5

  • Family:

    4000/14000/40000

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Logic IC Type:

    ENCODER

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    600 ns

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NLV14532BDR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal path short and direct to the heat sink or thermal pad.
  • To ensure reliable operation in high-temperature environments, follow the recommended operating temperature range, use a heat sink or thermal pad, and consider using thermal interface materials to improve heat transfer.
  • The recommended soldering conditions for the NLV14532BDR2G are: peak temperature of 260°C, soldering time of 10-30 seconds, and a soldering iron temperature of 350-370°C.
  • Yes, the NLV14532BDR2G is AEC-Q100 qualified, making it suitable for automotive applications. However, ensure that the device meets the specific requirements of your application, including temperature, voltage, and reliability.
  • To handle ESD protection for the NLV14532BDR2G, follow proper handling and storage procedures, use ESD-protective packaging, and consider adding external ESD protection devices or circuits in your design.
