NLVVHCT125ADTRG - onsemi

Description: TTL-Compatible Inputs: VIL = 0.8V; VIH = 2.0V; Low Noise: VOLP = 0.8V (Max); Designed for 2V to 5.5V Operating Range; High Speed: tPD = 3.8ns (Typ) at VCC = 5V; Pin and Function Compatible with Other Standard Logic Families; Power Down Protection Provided on Inputs; Balanced Propagation Delays; Low Power Dissipation: ICC = 4mA (Max) at TA = 25°C; Chip Complexity: 72 FETs or 18 Equivalent Gates; Latchup Performance Exceeds 300mA; ESD Performance: HBM > 2000V; Machine Model > 200V; Pb-Free Packages are Availa

Download NLVVHCT125ADTRG Model

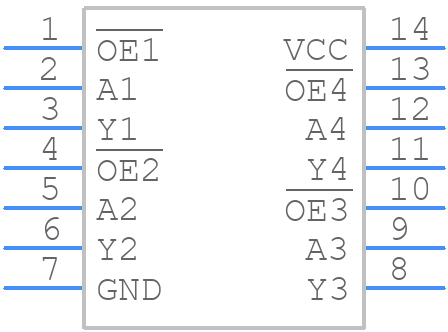

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NLVVHCT125ADTRG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP−14 WB CASE 948G ISSUE C_2026OE1
click to zoom
3D Models
NLVVHCT125ADTRG - onsemi  - 3D model - Small Outline Packages - TSSOP−14 WB CASE 948G ISSUE C_2026OE1
click to zoom

NLVVHCT125ADTRG Details

  • Manufacturer Part Number:

    NLVVHCT125ADTRG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP-14 WB

  • Package Description:

    ROHS COMPLIANT, TSSOP-14

  • Manufacturer Package Code:

    948G

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Control Type:

    ENABLE LOW

  • Count Direction:

    UNIDIRECTIONAL

  • Family:

    AHCT/VHCT/VT

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Load Capacitance (CL):

    50 pF

  • Logic IC Type:

    BUS DRIVER

  • Max I(ol):

    0.008 A

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    4

  • Number of Ports:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    75 mA

  • Prop. Delay@Nom-Sup:

    11.5 ns

  • Propagation Delay (tpd):

    11.5 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm
