NMJ6HCD3 - Neutrik

Description: 6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder, 3A, 0.50 A @ 50 V (Switch contact), 1 kVdc, < 15 mΩ , -25°C to 70°C

Download NMJ6HCD3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
NMJ6HCD3 - Neutrik - PCB symbol
click to zoom
PCB Footprints

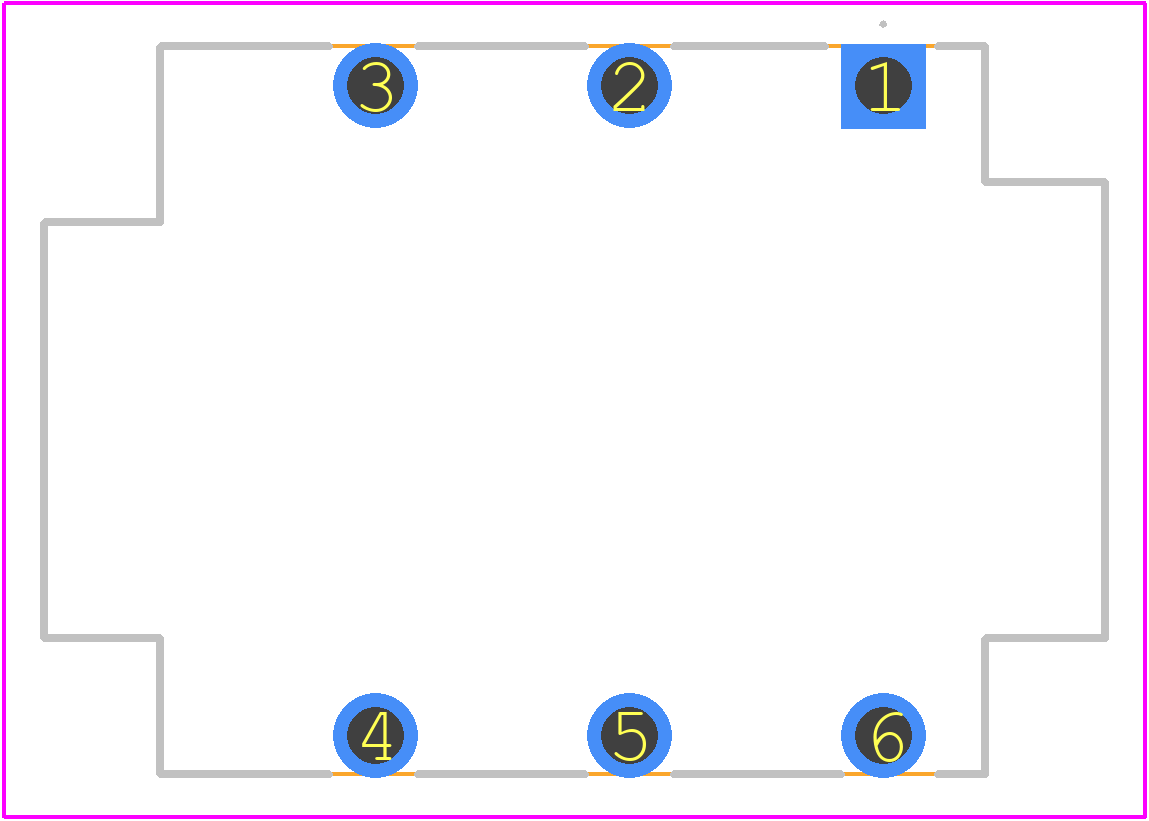

NMJ6HCD3 - Neutrik PCB footprint - Other - Other - NMJ6HCD3-4
click to zoom
3D Models
NMJ6HCD3 - Neutrik - 3D model - Other - NMJ6HCD3-4
click to zoom

NMJ6HCD3 Details

  • Manufacturer Part Number:

    NMJ6HCD3

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Manufacturer:

    Neutrik USA Inc

  • YTEOL:

    7

  • Audio Type:

    STEREO

  • Body Breadth:

    0.686 inch

  • Body Depth:

    1.144 inch

  • Body Length:

    0.717 inch

  • Body/Shell Style:

    JACK

  • Connector Type:

    6.3MM AUDIO

  • Contact Finish Mating:

    AG

  • Contact Gender:

    FEMALE

  • Contact Material:

    BRONZE

  • Contact Resistance:

    15 mΩ

  • Contact Style:

    RND PIN-SKT

  • Dielectric Withstanding Voltage:

    1000VDC V

  • Durability:

    10000 Cycles

  • Insulation Resistance:

    1000000000 Ω

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Poles:

    1

  • Number of Ports:

    1

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Plating Thickness:

    79u inch

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    3 A

  • Terminal Length:

    0.157 inch

  • Termination Type:

    SOLDER

NMJ6HCD3 Frequently Asked Questions (FAQs)

  • The recommended torque for securing the NMJ6HCD3 connector is 0.6 Nm (5.3 in-lbs) to 1.2 Nm (10.3 in-lbs) according to Neutrik's application notes.
  • Yes, the NMJ6HCD3 connector is designed for outdoor use and meets the IP67 rating, which means it is protected against dust and water immersion up to 1 meter for 30 minutes.
  • Yes, the NMJ6HCD3 connector is designed to withstand high-vibration environments, making it suitable for applications such as live sound, touring, and industrial installations.
  • Yes, the NMJ6HCD3 connector is part of Neutrik's XLR series and is compatible with other Neutrik XLR connectors, including the NC3MX and NC3FX models.
  • The maximum cable diameter that can be used with the NMJ6HCD3 connector is 6 mm (0.24 in) according to Neutrik's specifications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NMJ6HCD3 Overview

Use the download button to access the NMJ6HCD3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NMJ6H, or try a keyword search, such as Audio/RCA Connectors

About Neutrik

Neutrik is a leading manufacturer of audio connectors, professional entertainment and industrial interconnect solutions. The company specializes in the design, production, and distribution of high-quality connectors, cable connectors, patch panels, and related accessories. Neutrik's products are widely used in the audio, video, lighting, and industrial markets, serving professionals in the entertainment, broadcast, recording, and stage production industries.
