NMS0515C - Murata Electronics

Description: Murata Power Solutions 2W Isolated DC-DC Converter, Vin 4.5 → 5.5 V dc, Vout ±15V dc, I/O isolation 6kV dc

Download NMS0515C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

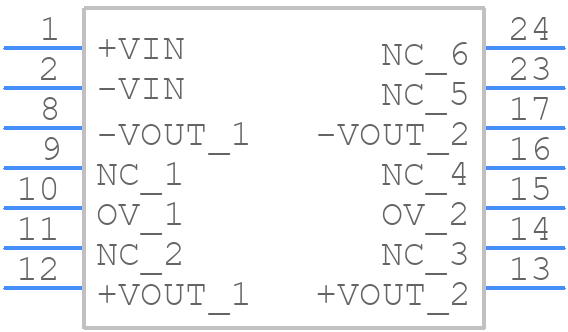

NMS0515C - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

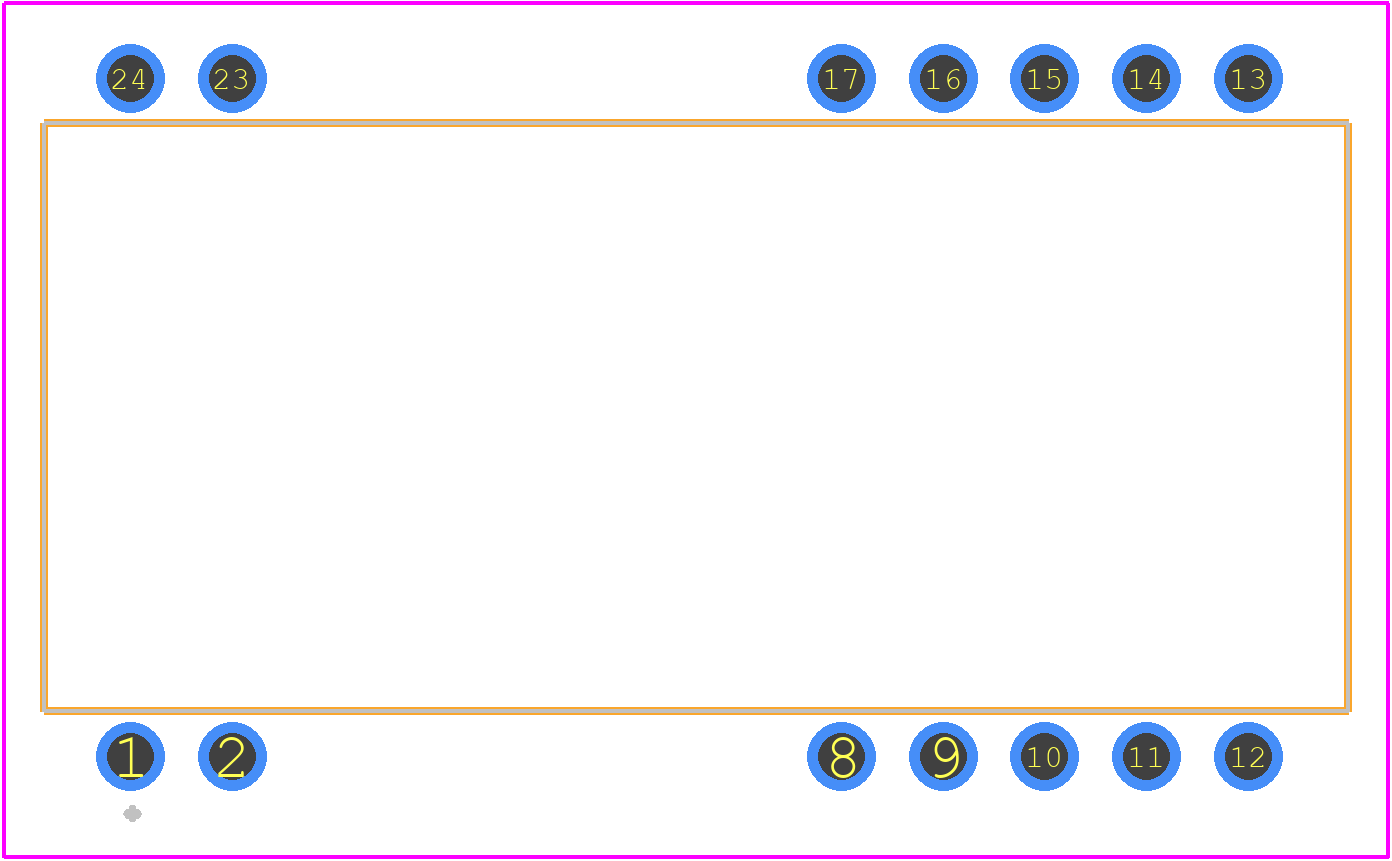

NMS0515C - Murata Electronics PCB footprint - Other - Other - NMS
click to zoom
3D Models
NMS0515C - Murata Electronics - 3D model - Other - NMS
click to zoom

NMS0515C Details

  • Manufacturer Part Number:

    NMS0515C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT PACKAGE-24/14

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2020-06-04

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    0

  • Additional Feature:

    ADDITIONAL -15V OUTPUT AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-XDMA-T14

  • JESD-609 Code:

    e3

  • Load Regulation-Max:

    15%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    70 °C

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    2 W

  • Trim/Adjustable Output:

    NO

NMS0515C Frequently Asked Questions (FAQs)

  • Murata recommends a land pattern with a pad size of 1.3mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape, and a minimum clearance of 0.2mm between the pad and the solder mask.
  • The NMS0515C is rated for operation up to 125°C, but it's recommended to derate the component's power handling by 1.25% per degree Celsius above 85°C to ensure reliable operation.
  • Murata recommends following standard ESD handling procedures, such as using an ESD wrist strap, mat, or workstation, and storing the components in an ESD-protective package.
  • Murata recommends a soldering profile with a peak temperature of 260°C, a dwell time above 220°C of 30-60 seconds, and a cooling rate of 4°C/second or less.
  • The NMS0515C is not hermetically sealed, so it's not recommended for use in humid or moist environments. If exposure to moisture is unavoidable, consider using a conformal coating or potting compound to protect the component.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NMS0515C Overview

Use the download button to access the NMS0515C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NMS05, or try a keyword search, such as Power Supply Modules

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
