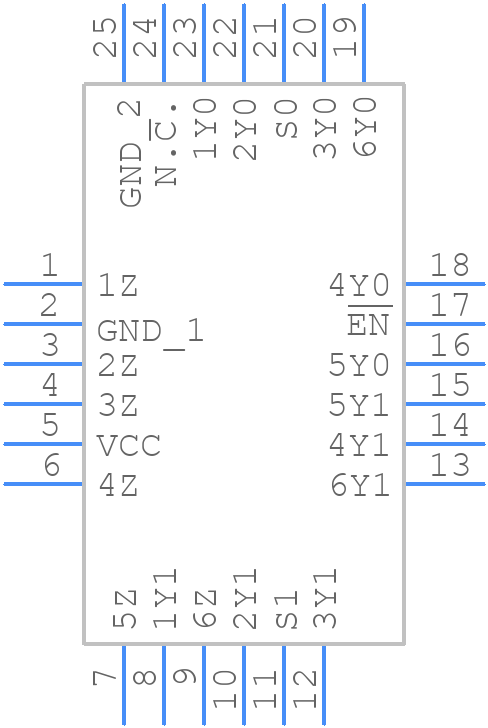

NMUX27518BY-Q100HP - Nexperia

NMUX27518BY-Q100HP Details

• Manufacturer Part Number:

  NMUX27518BY-Q100HP

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  HWQFN-24

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Nexperia

• YTEOL:

  7

• Analog IC - Other Type:

  SPDT

• JESD-30 Code:

  S-PQCC-N24

• Length:

  4 mm

• Moisture Sensitivity Level:

  1

• Number of Channels:

  6

• Number of Functions:

  1

• Number of Terminals:

  24

• Off-state Isolation-Nom:

  50 dB

• On-state Resistance Match-Nom:

  0.5 Ω

• On-state Resistance-Max (Ron):

  41 Ω

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  COMMON OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC24,.16SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  0.8 mm

• Signal Current-Max:

  0.05 A

• Supply Current-Max (Isup):

  0.0011 mA

• Supply Voltage-Max (Vsup):

  3.63 V

• Supply Voltage-Min (Vsup):

  1.08 V

• Supply Voltage-Nom (Vsup):

  1.2 V

• Surface Mount:

  YES

• Switch-off Time-Max:

  69 ns

• Switch-on Time-Max:

  78 ns

• Switching:

  BREAK-BEFORE-MAKE

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  4 mm
