NMUX27518PW-Q100J - Nexperia

Description: Automotive product qualification in accordance with AEC-Q100 (Grade 1) Specified from -40 °C to +125 °C Wide operating range: 1.08 V to 3.6 V Isolation in power-down mode, VCC = 0 V Low-capacitance switches, 21.5 pF (typical) Bandwidth up to 500 MHz for high-speed rail-to-rail signal handling Crosstalk and isolation OFF-state: –62 dB 1.8 V logic compatible control inputs 3.6 V tolerant control inputs Latch-up performance exceeds 100 mA per JESD 78, Class II ESD protection: HBM: ANSI/

Download NMUX27518PW-Q100J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

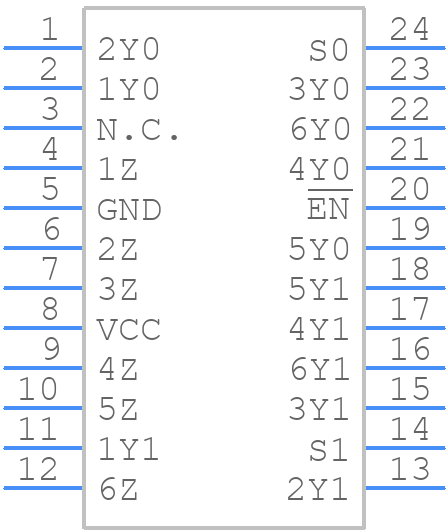

NMUX27518PW-Q100J - Nexperia - PCB symbol
click to zoom
PCB Footprints
NMUX27518PW-Q100J - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP24: plastic thin shrink small outline package; 24 leads; body width 4.4 mm
click to zoom
3D Models
NMUX27518PW-Q100J - Nexperia - 3D model - Small Outline Packages - TSSOP24: plastic thin shrink small outline package; 24 leads; body width 4.4 mm
click to zoom

NMUX27518PW-Q100J Details

  • Manufacturer Part Number:

    NMUX27518PW-Q100J

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Nexperia

  • Logic IC Type:

    MULTIPLEXER AND DEMUX/DECODER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NMUX27518PW-Q100J Overview

Use the download button to access the NMUX27518PW-Q100J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NMUX2, or try a keyword search, such as Multiplexer/Demultiplexers

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
