NOIP1FN0300A-QDI - onsemi

Description: IC IMAGE SENSOR 0.3MP 48LCC

Download NOIP1FN0300A-QDI Model

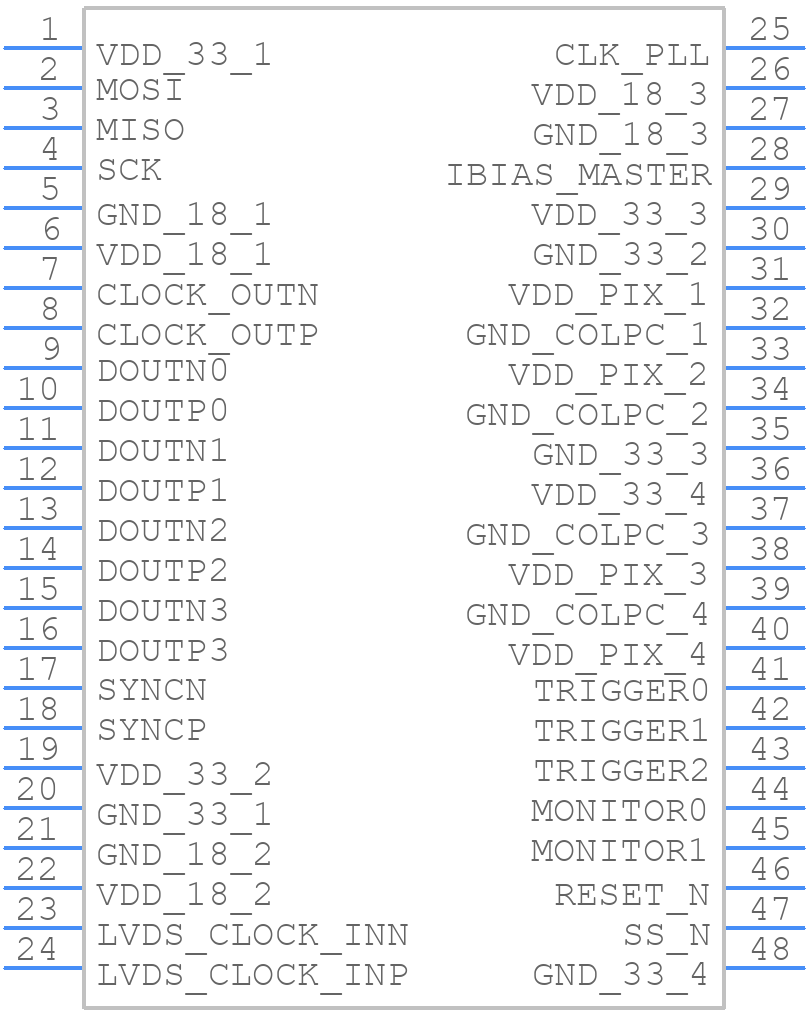

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

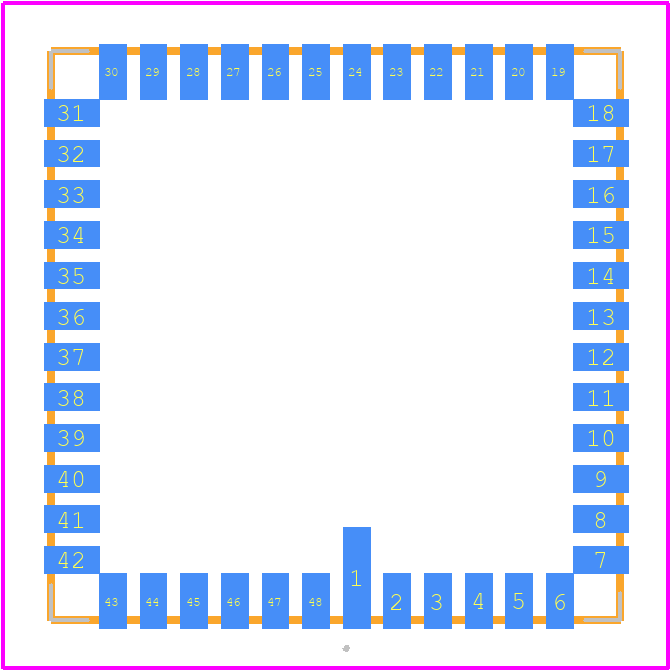

NOIP1FN0300A-QDI - onsemi PCB footprint - Other - Other - LCC48, 14.22x14.22 CASE 115AO ISSUE A_2021
click to zoom
3D Models
NOIP1FN0300A-QDI - onsemi  - 3D model - Other - LCC48, 14.22x14.22 CASE 115AO ISSUE A_2021
click to zoom

NOIP1FN0300A-QDI Details

  • Manufacturer Part Number:

    NOIP1FN0300A-QDI

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LCC-48

  • Manufacturer Package Code:

    115AO

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Additional Feature:

    IT ALSO OPERATES AT 3.2 TO 3.4 V SUPPLY VOLTAGE, GLOBAL SHUTTER

  • Array Type:

    FRAME

  • Body Breadth:

    14.22 mm

  • Body Height:

    2.28 mm

  • Body Length or Diameter:

    14.22 mm

  • Dynamic Range:

    60 dB

  • Frame Rate:

    815 fps

  • Horizontal Pixel:

    640

  • Master Clock:

    360 MHz

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optical Format:

    1/4 inch

  • Output Interface Type:

    4-WIRE INTERFACE

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Pixel Size:

    4.80X4.80 µm

  • Sensors/Transducers Type:

    IMAGE SENSOR,CMOS

  • Spectral Response (nm):

    400-1000

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

  • Vertical Pixel:

    480

NOIP1FN0300A-QDI Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces as short as possible and use a common mode choke to reduce EMI.
  • Use a thermal interface material (TIM) to improve heat transfer between the device and the heat sink. Ensure good airflow and avoid overheating the device.
  • The maximum allowed voltage on the input pins is 3.6V. Exceeding this voltage may damage the device.
  • Yes, but ensure that the input voltage is regulated to 3.3V or lower using a voltage regulator or a voltage divider to prevent damage to the device.
  • Use an oscilloscope to check the input and output waveforms. Verify that the power supply voltage is within the recommended range and that the device is properly soldered to the PCB.
