NOIP1SN5000A-QTI footprint, schematic symbol and 3D model by onsemi

Symbol

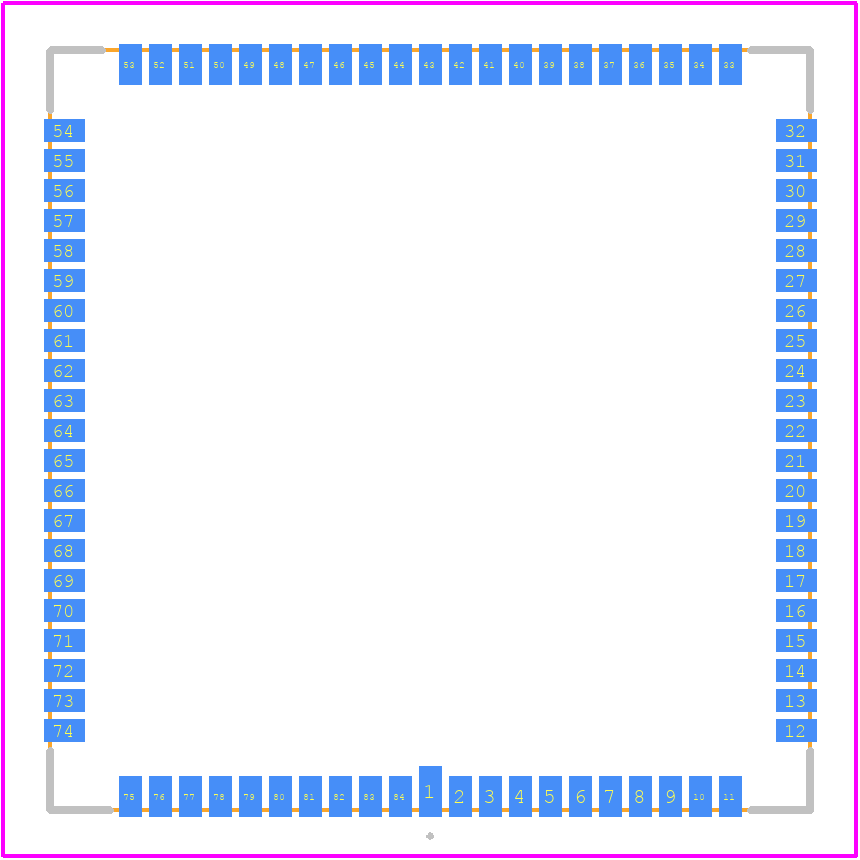

PCB Footprints

3D Models

NOIP1SN5000A-QTI Details

Manufacturer Part Number:
NOIP1SN5000A-QTI
Brand Name:
onsemi
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
LCC-84
Manufacturer Package Code:
115BC
Country Of Origin:
Thailand
Date Of Intro:
2016-08-10
Manufacturer:
onsemi
YTEOL:
6.9
Additional Feature:
GLOBAL SHUTTER; IT ALSO OPERATES AT 3.3 V NOMINAL SUPPLY VOLTAGE
Array Type:
FRAME
Body Breadth:
19 mm
Body Height:
2.41 mm
Body Length or Diameter:
19 mm
Dynamic Range:
60 dB
Frame Rate:
100 fps
Horizontal Pixel:
2592
Master Clock:
360 MHz
Mounting Feature:
SURFACE MOUNT
Operating Current-Max:
140 mA
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optical Format:
1 inch
Output Interface Type:
4-WIRE INTERFACE
Output Type:
DIGITAL OUTPUT
Package Shape/Style:
SQUARE
Pixel Size:
4.8X4.8 µm
Sensitivity (V/lx.s):
7.5 V/lx.s
Sensors/Transducers Type:
IMAGE SENSOR,CMOS
Spectral Response (nm):
400-1000
Supply Voltage-Max:
1.9 V
Supply Voltage-Min:
1.7 V
Surface Mount:
YES
Termination Type:
SOLDER
Vertical Pixel:
2048

A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and decoupling capacitors should be placed close to the device pins.
Use a low-ESR capacitor (e.g., 100nF) connected between VDD and GND, and a 10uF capacitor connected between VDD and GND for bulk decoupling. Ensure the power supply is stable and has low ripple.
The device is rated for operation from -40°C to 125°C, but the recommended operating temperature range is -20°C to 85°C for optimal performance and reliability.
Use ESD protection devices (e.g., TVS diodes) on the input pins, and ensure the PCB design includes ESD protection features such as guard rings and ESD-safe handling procedures.
The device supports clock frequencies up to 100 MHz, but the recommended range is 10 MHz to 50 MHz for optimal performance and power consumption.
