- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for NP2G+
- Part Number NP2G+
- Manufacturer Mini-Circuits
- Pin Count 6
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - NP2G+-2
- Released Date Nov 15, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NP2G+ Details
-
Manufacturer Part Number:
NP2G+
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
Date Of Intro:
2018-09-14
-
Manufacturer:
Mini-Circuits
-
RF/Microwave Device Type:
SPLITTER AND COMBINER
NP2G+ Frequently Asked Questions (FAQs)
-
The NP2G+ can handle up to +20 dBm of input power without damage, but it's recommended to operate at +15 dBm or less for optimal performance.
-
The NP2G+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network with capacitors and inductors to match the impedance of your system to 50 ohms.
-
The NP2G+ operates from -40°C to +85°C, but optimal performance is achieved between 0°C to 40°C.
-
Yes, the NP2G+ can be used in switching applications, but it's recommended to use a series resistor to limit the current and prevent damage to the device.
-
The NP2G+ requires a positive voltage supply of 3-5V and a current of 10-20mA. Use a voltage regulator and decoupling capacitors to ensure stable biasing.
Trust Checks
Expert Contribution
System Verified
Community Approved
NP2G+ Overview

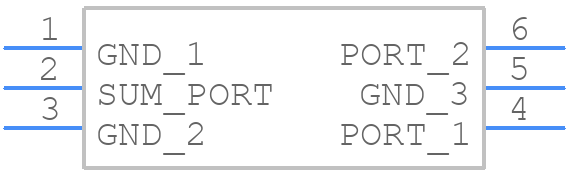

Use the download button to access the NP2G+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search
or try a keyword search, such as RF/Microwave Splitter/Combiners
About Mini-Circuits
Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
