NPA-300B-005D - Amphenol

Description: Board Mount Pressure Sensors 5 PSI Differential Barbed Amp. Output

Download NPA-300B-005D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

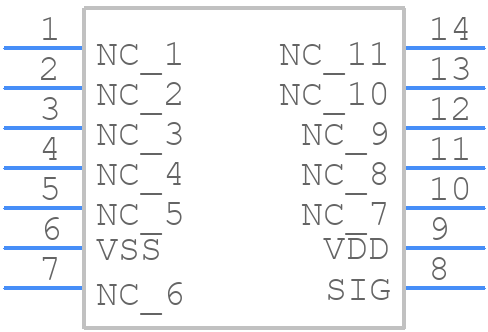

Symbol
NPA-300B-005D - Amphenol - PCB symbol
click to zoom
PCB Footprints
NPA-300B-005D - Amphenol PCB footprint - Other - Other - NPA-300B-005D-7
click to zoom
3D Models
NPA-300B-005D - Amphenol - 3D model - Other - NPA-300B-005D-7
click to zoom

NPA-300B-005D Details

  • Manufacturer Part Number:

    NPA-300B-005D

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-14

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    7

  • Accuracy-Max (%):

    1.5%

  • Body Breadth:

    7.52 mm

  • Body Height:

    3.3 mm

  • Body Length or Diameter:

    11.36 mm

  • JESD-609 Code:

    e4

  • Linearity (%):

    0.25 %

  • Mounting Feature:

    SURFACE MOUNT

  • Offset-Nom:

    10MV

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    100-166mV

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Port Type:

    BARBED

  • Pressure Sensing Mode:

    DIFFERENTIAL

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    3.465 V

  • Supply Voltage-Min:

    3.135 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

NPA-300B-005D Frequently Asked Questions (FAQs)

  • The operating temperature range of the NPA-300B-005D connector is -55°C to 125°C.
  • Yes, the NPA-300B-005D connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial equipment.
  • The NPA-300B-005D connector has a mating cycle life of 500 cycles minimum, ensuring reliable connections even in demanding applications.
  • Yes, the NPA-300B-005D connector is designed to operate in harsh environments, including high humidity and salt spray, making it suitable for applications such as marine, aerospace, and industrial equipment.
  • The typical lead time for delivery of the NPA-300B-005D connector varies depending on the quantity and availability, but it is usually around 6-12 weeks.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NPA-300B-005D Overview

Use the download button to access the NPA-300B-005D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NPA-3, or try a keyword search, such as Pressure Sensors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
