Part Image

NPA-300B-02WD - Amphenol

Description: Board Mount Pressure Sensors NPA AmpOutput3.3vdc supply,Barbed Port

Download NPA-300B-02WD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

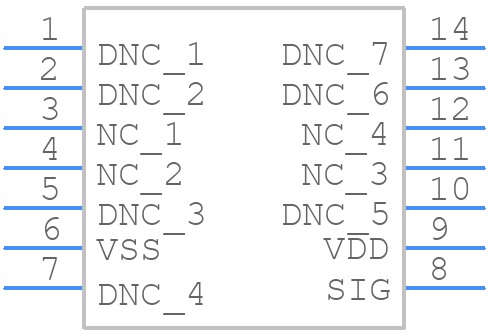

Symbol
NPA-300B-02WD - Amphenol - PCB symbol
click to zoom
PCB Footprints
NPA-300B-02WD - Amphenol PCB footprint - Other - Other - SOIC14
click to zoom
3D Models
NPA-300B-02WD - Amphenol - 3D model - Other - SOIC14
click to zoom

NPA-300B-02WD Details

  • Manufacturer Part Number:

    NPA-300B-02WD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-14

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    7

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Port Type:

    BARBED

  • Pressure Sensing Mode:

    DIFFERENTIAL

  • Response Time:

    500 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    3.32 V

  • Supply Voltage-Min:

    3.28 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

NPA-300B-02WD Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • Yes, the NPA-300B-02WD is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • Yes, the NPA-300B-02WD has a IP67 rating, making it suitable for outdoor use and able to withstand exposure to water and dust.
  • The maximum operating temperature of the NPA-300B-02WD is 125°C (257°F), making it suitable for high-temperature applications.
  • Yes, the NPA-300B-02WD can accommodate wire sizes from 16 AWG to 20 AWG, but the recommended wire size is 18 AWG for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NPA-300B-02WD Overview

Use the download button to access the NPA-300B-02WD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NPA-3, or try a keyword search, such as Pressure Sensors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
