NPA-300B-05WG - Amphenol

Description: Board Mount Pressure Sensors NPA AmpOutput3.3vdc supply,Barbed Port

Download NPA-300B-05WG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

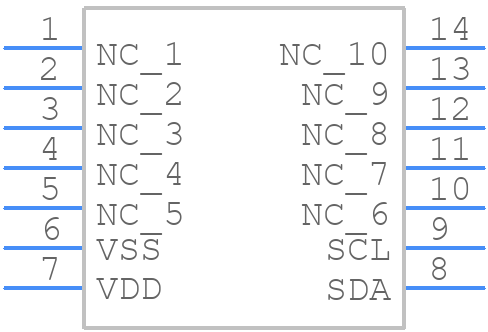

NPA-300B-05WG - Amphenol - PCB symbol
click to zoom
PCB Footprints

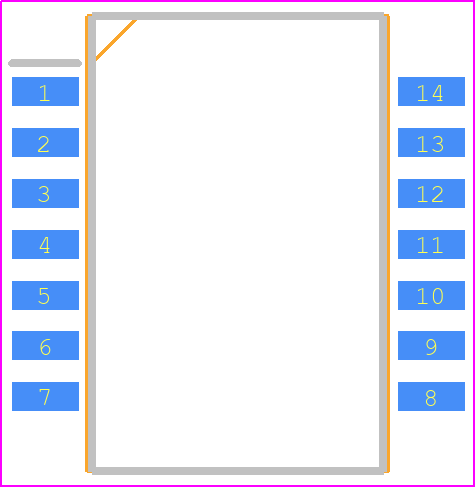

NPA-300B-05WG - Amphenol PCB footprint - Small Outline Packages - Small Outline Packages - 14-PIN 2 BARBED
click to zoom
3D Models
NPA-300B-05WG - Amphenol - 3D model - Small Outline Packages - 14-PIN 2 BARBED
click to zoom

NPA-300B-05WG Details

  • Manufacturer Part Number:

    NPA-300B-05WG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-14

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    7

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Port Type:

    BARBED

  • Pressure Sensing Mode:

    GAGE

  • Response Time:

    500 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    3.32 V

  • Supply Voltage-Min:

    3.28 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

NPA-300B-05WG Frequently Asked Questions (FAQs)

  • The operating temperature range of NPA-300B-05WG is -40°C to 125°C.
  • Yes, NPA-300B-05WG is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The mating cycle life of NPA-300B-05WG is 500 cycles minimum.
  • Yes, NPA-300B-05WG is designed to withstand high-vibration environments, making it suitable for use in aerospace, defense, and other applications where vibration is a concern.
  • Yes, NPA-300B-05WG is designed to operate in harsh environments, including exposure to moisture, salt spray, and other corrosive substances.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NPA-300B-05WG Overview

Use the download button to access the NPA-300B-05WG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NPA-3, or try a keyword search, such as Pressure Sensors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
