- Part Number NPA-730B-005D
- Manufacturer Amphenol
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - NPA-730B-005D-2
- Released Date Jun 14, 2022
- Last Modified Date May 29, 2026 7:51 AM UTC
- Pinout / Pin List Click Here (Member Only)
NPA-730B-005D Details
-
Manufacturer Part Number:
NPA-730B-005D
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
SOIC-14
-
Manufacturer:
Amphenol Corporation
-
YTEOL:
7
-
Accuracy-Max (%):
1.5%
-
Body Breadth:
7.52 mm
-
Body Height:
3.3 mm
-
Body Length or Diameter:
11.36 mm
-
Linearity (%):
0.25 %
NPA-730B-005D Frequently Asked Questions (FAQs)
-
The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals, as specified in Amphenol's application notes.
-
Yes, the NPA-730B-005D is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration, as per IEC 61373 Cat. 2.
-
Yes, the NPA-730B-005D has a IP67 rating, making it suitable for outdoor use and providing protection against dust and water ingress.
-
The operating temperature range of the NPA-730B-005D is -40°C to +125°C, making it suitable for use in a wide range of applications.
-
Yes, the NPA-730B-005D can accommodate wire sizes from 20 AWG to 28 AWG, but the recommended wire size is 24 AWG for optimal performance.
Trust Checks
Community Provided
System Verified
Community Approved
NPA-730B-005D Overview

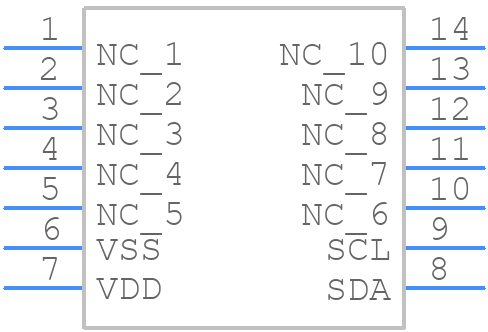

Use the download button to access the NPA-730B-005D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NPA-7,
or try a keyword search, such as Pressure Sensors
