Nordic Semiconductor provides a recommended PCB layout guide in their application note AN047, which includes guidelines for component placement, routing, and grounding to ensure optimal performance and minimize electromagnetic interference (EMI).
To configure the NPM1300-CAAA-R for low power consumption, you can use the Power Management Unit (PMU) to control the power modes of the device. The PMU allows you to set the device to different power modes, such as sleep, idle, and active, to optimize power consumption based on the application's requirements.
The maximum operating temperature range for the NPM1300-CAAA-R is -40°C to +85°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of -20°C to +70°C for optimal performance and reliability.
Antenna tuning for the NPM1300-CAAA-R involves optimizing the antenna's impedance to match the device's output impedance. Nordic Semiconductor provides guidelines for antenna tuning in their application note AN044, which includes information on antenna design, simulation, and measurement techniques.
The maximum transmit power of the NPM1300-CAAA-R is +20 dBm, as specified in the datasheet. However, the actual transmit power may vary depending on the application's requirements and regulatory constraints.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
nPM1300-CAAA-R Overview

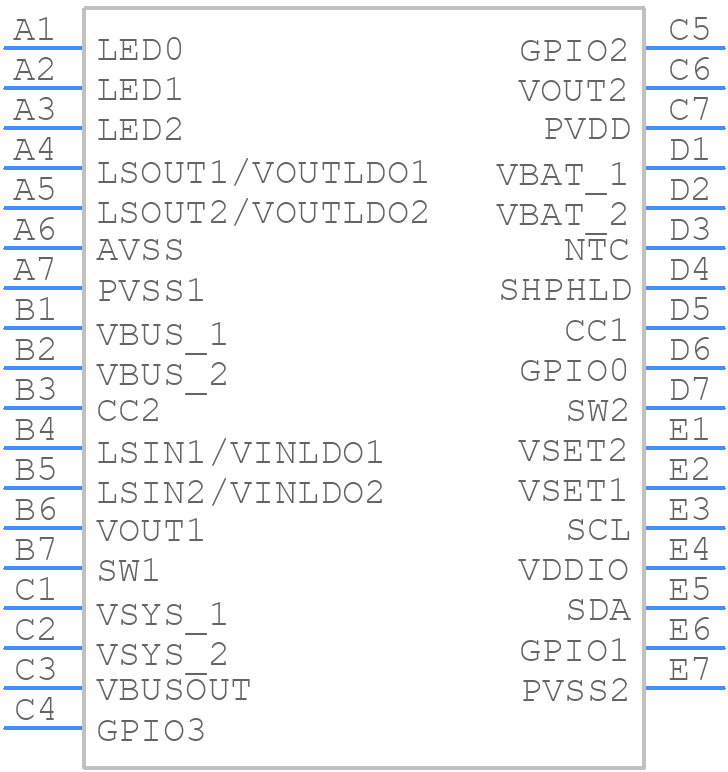

Use the download button to access the nPM1300-CAAA-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like nPM13,
or try a keyword search, such as Power Management Circuits
