nPM1300-CAAA-R7 - Nordic Semiconductor

Description: Battery Management Power Management IC (PMIC) with unique system management features, WLCSP

Download nPM1300-CAAA-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

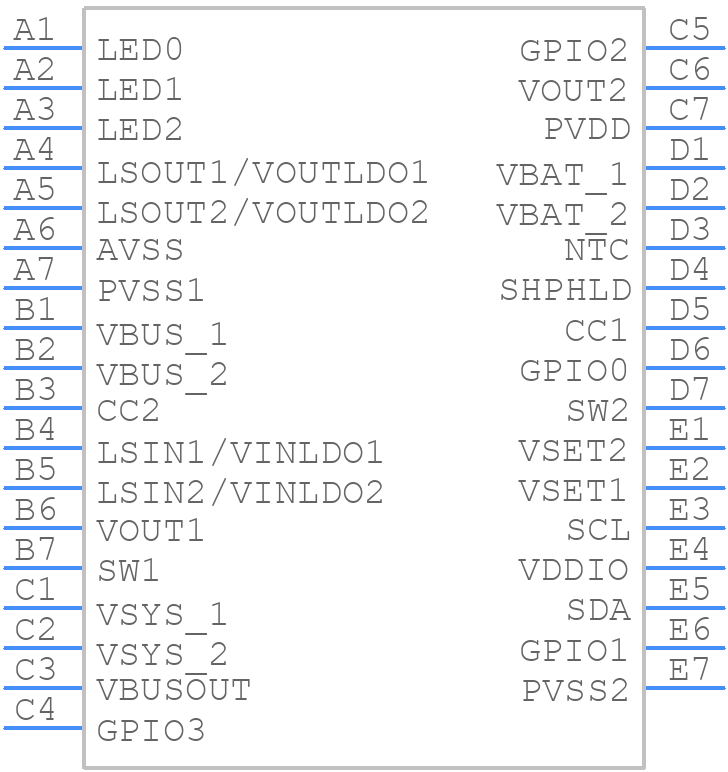

nPM1300-CAAA-R7 - Nordic Semiconductor - PCB symbol
click to zoom
PCB Footprints
nPM1300-CAAA-R7 - Nordic Semiconductor PCB footprint - BGA - BGA - 35-Ball WLCSP
click to zoom
3D Models
nPM1300-CAAA-R7 - Nordic Semiconductor - 3D model - BGA - 35-Ball WLCSP
click to zoom

nPM1300-CAAA-R7 Details

  • Manufacturer Part Number:

    NPM1300-CAAA-R7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    WLCSP-35

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Nordic Semiconductor

  • Additional Feature:

    TERMINAL PITCH MAX CONSIDERED

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    R-XBGA-B35

  • Length:

    3.0775 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    35

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA35,5X7,17

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.512 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.44 mm

  • Terminal Position:

    BOTTOM

  • Threshold Voltage-Nom:

    +3.6V

  • Width:

    2.3775 mm

nPM1300-CAAA-R7 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for NPM1300-CAAA-R7 is -40°C to 85°C.
  • The power modes of NPM1300-CAAA-R7 can be configured using the nRF5 SDK provided by Nordic Semiconductor. The SDK provides APIs to control the power modes, including System ON, System OFF, and Sleep modes.
  • The maximum current consumption of NPM1300-CAAA-R7 is approximately 12mA in TX mode and 10mA in RX mode, depending on the operating frequency and other factors.
  • Antenna tuning for NPM1300-CAAA-R7 can be implemented using the Nordic Semiconductor's Antenna Tuning Guide, which provides guidelines for selecting and tuning the antenna. Additionally, the nRF5 SDK provides APIs for antenna tuning and impedance matching.
  • The range of the NPM1300-CAAA-R7 module depends on various factors such as the operating frequency, transmission power, and environment. However, in general, the module can achieve a range of up to 100 meters in open air and up to 10 meters in indoor environments.
