NPM1300-QEAA-R footprint, schematic symbol and 3D model by Nordic Semiconductor

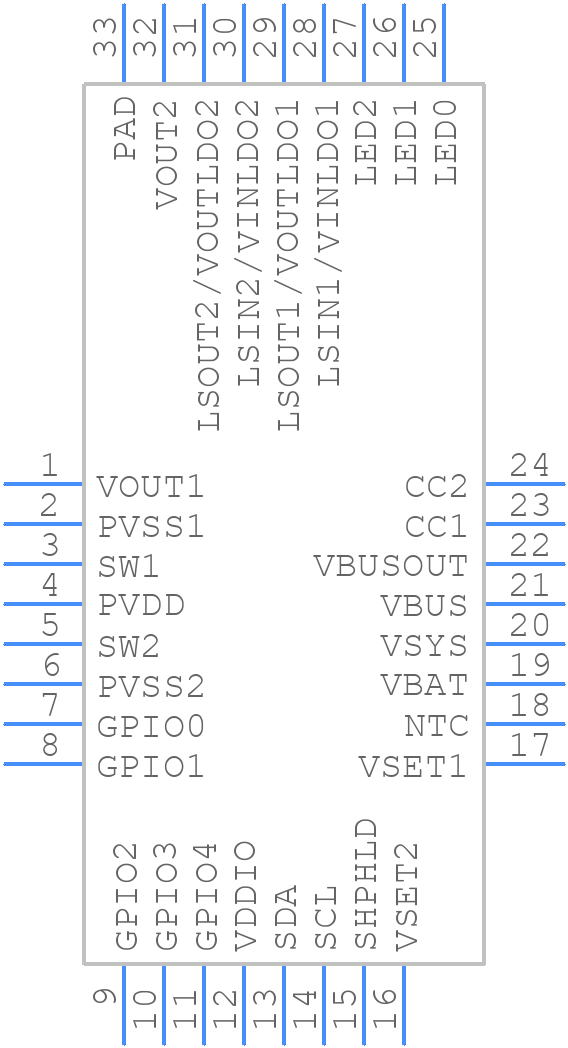

Symbol

click to zoom

PCB Footprints

NPM1300-QEAA-R - Nordic Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN32-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NPM1300-QEAA-R
Part Number NPM1300-QEAA-R
Manufacturer Nordic Semiconductor
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - QFN32-2
Released Date Dec 20, 2023
Last Modified Date Dec 20, 2023 1:53 AM UTC
Pinout / Pin List Click Here (Member Only)

NPM1300-QEAA-R Details

Manufacturer Part Number:
NPM1300-QEAA-R
Rohs Code:
Yes
Part Life Cycle Code:
Contact Manufacturer
Package Description:
QFN-32
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
16 Weeks
Manufacturer:
Nordic Semiconductor
Adjustable Threshold:
NO
Analog IC - Other Type:
INTEGRATED POWER MANAGEMENT UNIT
JESD-30 Code:
S-XQCC-N32
Length:
5 mm
Moisture Sensitivity Level:
2
Number of Channels:
4
Number of Functions:
1
Number of Terminals:
32
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
HVQCCN
Package Equivalence Code:
LCC32,.2SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Seated Height-Max:
0.9 mm
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
4 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Threshold Voltage-Nom:
+3.6V
Width:
5 mm

NPM1300-QEAA-R Frequently Asked Questions (FAQs)

Nordic Semiconductor provides a recommended PCB layout guide in their application note AN044, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The PMU in NPM1300-QEAA-R can be configured using the Nordic nRF5 SDK, which provides APIs for power mode control. The PMU can be configured to enter low-power modes such as System ON, System OFF, and Hibernate modes, depending on the application requirements.
The NPM1300-QEAA-R has an operating temperature range of -40°C to 85°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
Nordic Semiconductor provides a secure boot and firmware update mechanism through their nRF5 SDK, which includes APIs for secure boot, firmware encryption, and over-the-air (OTA) updates. Additionally, Nordic recommends using a secure bootloader and implementing cryptographic algorithms such as AES and SHA to ensure secure firmware updates.
Nordic Semiconductor provides a recommended antenna design guide in their application note AN043, which includes guidelines for antenna selection, design, and placement for optimal RF performance. The guide also includes information on antenna tuning and matching for the NPM1300-QEAA-R.

Trust Checks

System Verified

NPM1300-QEAA-R Overview

Use the download button to access the NPM1300-QEAA-R schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like NPM13, or try a keyword search, such as Power Management Circuits

About Nordic Semiconductor

Nordic Semiconductor is a fabless semiconductor company focused on ultra-low-power wireless solutions for IoT applications. Its portfolio includes highly integrated SoCs and SiPs supporting Bluetooth® Low Energy (BLE), Thread, Zigbee, Wi-Fi, DECT NR+, and cellular IoT standards such as LTE-M and NB-IoT. Nordic devices are designed for energy-efficient, battery-powered applications across consumer, industrial, healthcare, and smart home markets.
