NPP-301A-700AT - Amphenol

Description: Board Mount Pressure Sensors 100 PSIA Non-Ported

Download NPP-301A-700AT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

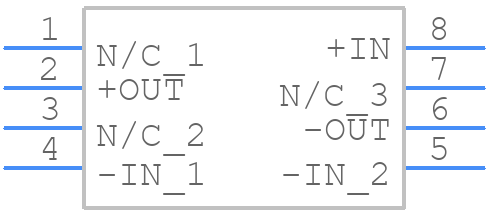

Symbol
NPP-301A-700AT - Amphenol - PCB symbol
click to zoom
PCB Footprints
NPP-301A-700AT - Amphenol PCB footprint - Small Outline Packages - Small Outline Packages - NPP-301A-100A-
click to zoom
3D Models
NPP-301A-700AT - Amphenol - 3D model - Small Outline Packages - NPP-301A-100A-
click to zoom

NPP-301A-700AT Details

  • Manufacturer Part Number:

    NPP-301A-700AT

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, SOP-8

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    7

  • Additional Feature:

    IT IS HAVING 0.20 PERCENT STATIC ACCURACY AND OFFSET 10 MV/V

  • Body Breadth:

    4.1 mm

  • Body Height:

    2.8 mm

  • Body Length or Diameter:

    5.1 mm

  • Housing:

    PLASTIC

  • Linearity (%):

    0.2 %

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    40-80mV

  • Output Type:

    VOLTAGE OUTPUT

  • Package Shape/Style:

    RECTANGULAR

  • Port Type:

    HOLE

  • Pressure Sensing Mode:

    ABSOLUTE

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    10 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

NPP-301A-700AT Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the NPP-301A-700AT connector.
  • Yes, the NPP-301A-700AT connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial systems.
  • Yes, the NPP-301A-700AT connector is designed to operate in harsh environments, including high temperatures up to 150°C and high humidity. However, it's essential to follow the recommended derating guidelines for extreme conditions.
  • The NPP-301A-700AT connector has a mating cycle life of 500 cycles, making it suitable for applications that require frequent connections and disconnections.
  • Yes, the NPP-301A-700AT connector is designed to be compatible with other connectors from Amphenol Corporation, including the NPP-301A-700BT and NPP-301A-700CT connectors.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NPP-301A-700AT Overview

Use the download button to access the NPP-301A-700AT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NPP-3, or try a keyword search, such as Pressure Sensors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
