NPP-301B-100A - Amphenol

Description: Board Mount Pressure Sensors 15 PSIA Ported

Download NPP-301B-100A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

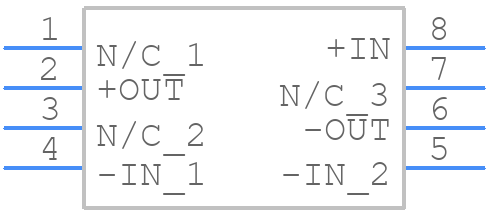

NPP-301B-100A - Amphenol - PCB symbol
click to zoom
PCB Footprints
NPP-301B-100A - Amphenol PCB footprint - Small Outline Packages - Small Outline Packages - SO-8
click to zoom
3D Models
NPP-301B-100A - Amphenol - 3D model - Small Outline Packages - SO-8
click to zoom

NPP-301B-100A Details

  • Manufacturer Part Number:

    NPP-301B-100A

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, SOP-8

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    7

  • Additional Feature:

    IT IS HAVING 0.20 PERCENT STATIC ACCURACY AND OFFSET 10 MV/V

  • Body Breadth:

    4.1 mm

  • Body Height:

    2.16 mm

  • Body Length or Diameter:

    5.1 mm

  • Housing:

    PLASTIC

  • Linearity (%):

    0.2 %

  • Mounting Feature:

    SURFACE MOUNT

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    40-80mV

  • Output Type:

    VOLTAGE OUTPUT

  • Package Shape/Style:

    RECTANGULAR

  • Port Type:

    HOLE

  • Pressure Sensing Mode:

    ABSOLUTE

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    10 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

NPP-301B-100A Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the coupling nut and 5-7 in-lbs (0.6-0.8 Nm) for the backshell.
  • Yes, the NPP-301B-100A is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial systems.
  • Yes, the NPP-301B-100A is designed to operate in harsh environments, with a temperature range of -55°C to 150°C and humidity up to 95% RH. However, it's essential to follow the recommended derating and environmental considerations outlined in the datasheet.
  • The NPP-301B-100A connector is rated for a minimum of 500 mating cycles, making it suitable for applications where frequent connections and disconnections are required.
  • Yes, the NPP-301B-100A is compatible with other Amphenol connectors in the same series, including the NPP-301B-050A. However, it's essential to verify the specific connector configuration and mating compatibility before use.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NPP-301B-100A Overview

Use the download button to access the NPP-301B-100A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NPP-3, or try a keyword search, such as Pressure Sensors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
