NQ0201100000G - Amphenol

Description: Fixed Terminal Blocks Term Bk,SMT,2P,2.5mm Natural, 20-26AWG

Download NQ0201100000G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

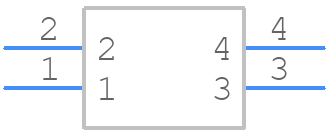

NQ0201100000G - Amphenol - PCB symbol
click to zoom
PCB Footprints

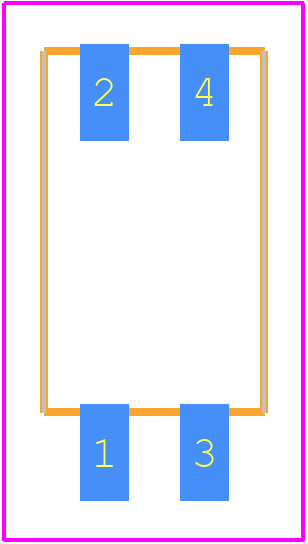

NQ0201100000G - Amphenol PCB footprint - Other - Other - NQ0201100000G-2
click to zoom
3D Models
NQ0201100000G - Amphenol - 3D model - Other - NQ0201100000G-2
click to zoom

NQ0201100000G Details

  • Manufacturer Part Number:

    NQ0201100000G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Amphenol Corporation

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

NQ0201100000G Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of NQ0201100000G is 0.5-0.7 Nm (5-7 in-lbs).
  • Yes, the NQ0201100000G is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, automotive, and industrial control systems.
  • Yes, the NQ0201100000G is designed to operate in harsh environments, with a temperature range of -40°C to 125°C and humidity up to 95% RH. However, it's essential to follow the recommended derating guidelines for high-temperature applications.
  • The NQ0201100000G has a mating cycle life of at least 500 cycles, making it suitable for applications where frequent mating and unmating are required.
  • Yes, the NQ0201100000G is designed for automated assembly, with a pick-and-place compatible design and a tape-and-reel packaging option available.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NQ0201100000G Overview

Use the download button to access the NQ0201100000G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NQ020, or try a keyword search, such as Terminals and Terminal Blocks
