NRF24AP2-1CHQ32-R - Nordic Semiconductor

Description: IC RF TxRx Only General ISM > 1GHz ANT™ 2.4GHz 32-VFQFN Exposed Pad

Download NRF24AP2-1CHQ32-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

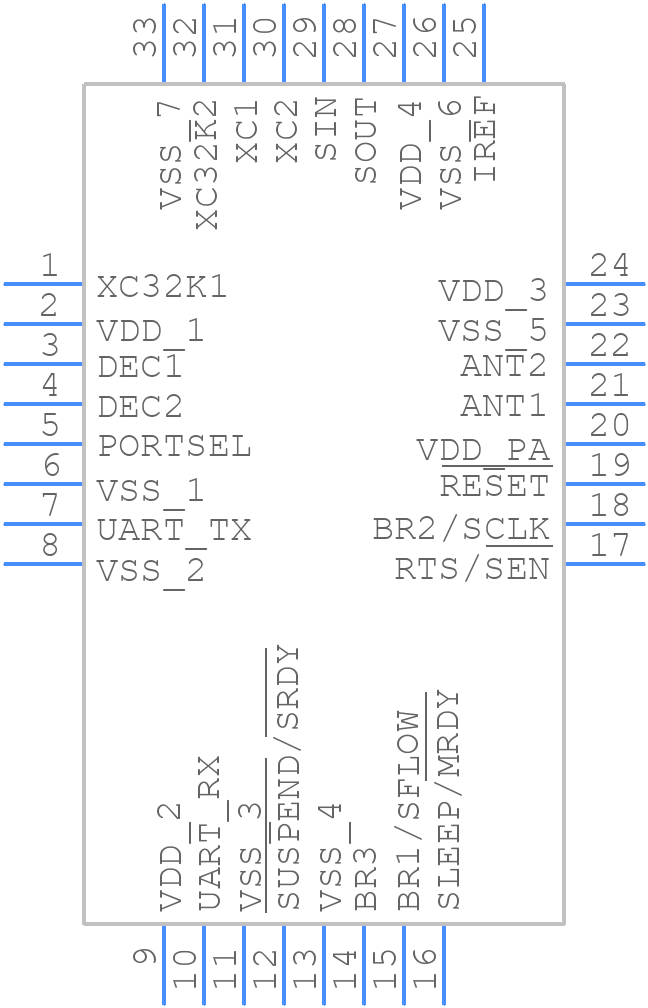

NRF24AP2-1CHQ32-R - Nordic Semiconductor - PCB symbol
click to zoom
PCB Footprints
NRF24AP2-1CHQ32-R - Nordic Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN32 5 x 5 x 0.85 mm, 0.5 mm pitch_2026
click to zoom
3D Models
NRF24AP2-1CHQ32-R - Nordic Semiconductor - 3D model - Quad Flat No-Lead - QFN32 5 x 5 x 0.85 mm, 0.5 mm pitch_2026
click to zoom

NRF24AP2-1CHQ32-R Details

  • Manufacturer Part Number:

    NRF24AP2-1CHQ32-R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Nordic Semiconductor

  • JESD-30 Code:

    S-PQCC-N32

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Qualification Status:

    Not Qualified

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

NRF24AP2-1CHQ32-R Frequently Asked Questions (FAQs)

  • The maximum transmission power of NRF24AP2-1CHQ32-R is 0 dBm (1 mW) in the 2.4 GHz frequency band.
  • Frequency hopping is not directly supported by the NRF24AP2-1CHQ32-R. However, you can implement it in your application layer by rapidly switching between different channels using the chip's channel selection feature.
  • Yes, NRF24AP2-1CHQ32-R can be used for mesh networking, but it requires additional software implementation to manage the mesh network topology and routing. The chip itself does not have built-in mesh networking capabilities.
  • The maximum data transfer rate of NRF24AP2-1CHQ32-R is 2 Mbps in the 2.4 GHz frequency band.
  • To ensure coexistence with other 2.4 GHz devices, you can implement adaptive frequency hopping, use a listen-before-talk (LBT) scheme, or use a frequency agility mechanism to dynamically switch to a less congested channel.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NRF24AP2-1CHQ32-R Overview

Use the download button to access the NRF24AP2-1CHQ32-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NRF24, or try a keyword search, such as Other Telecom ICs
