NRF24AP2-USBQ32-T - Nordic Semiconductor

Description: RF ISM Transceiver GFSK 5V 32-Pin QFN EP Tray

Download NRF24AP2-USBQ32-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

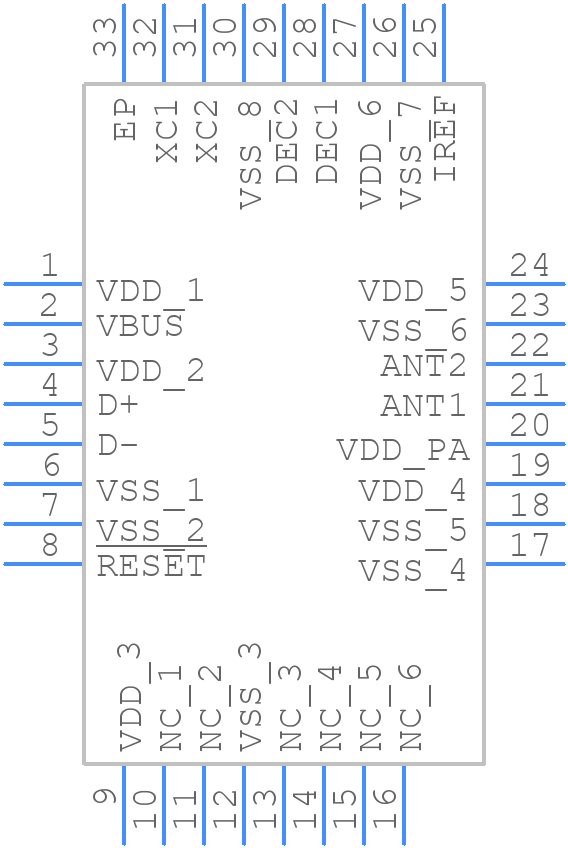

NRF24AP2-USBQ32-T - Nordic Semiconductor - PCB symbol
click to zoom
PCB Footprints
NRF24AP2-USBQ32-T - Nordic Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN32 5 x 5 x 0.85 mm, 0.5 mm pitch.
click to zoom
3D Models
NRF24AP2-USBQ32-T - Nordic Semiconductor - 3D model - Quad Flat No-Lead - QFN32 5 x 5 x 0.85 mm, 0.5 mm pitch.
click to zoom

NRF24AP2-USBQ32-T Details

  • Manufacturer Part Number:

    NRF24AP2-USBQ32-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Nordic Semiconductor

  • YTEOL:

    0

  • JESD-30 Code:

    S-PQCC-N32

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Packing Method:

    TRAY

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

NRF24AP2-USBQ32-T Frequently Asked Questions (FAQs)

  • The maximum range of the NRF24AP2-USBQ32-T module depends on various factors such as the environment, antenna design, and transmission power. However, in ideal conditions, it can reach up to 100 meters (330 feet) in open air.
  • To configure the NRF24AP2-USBQ32-T module for optimal performance, you need to adjust the transmission power, data rate, and channel settings according to your specific application requirements. You can use the Nordic Semiconductor's nRFgo Studio software to configure the module and optimize its performance.
  • Yes, the NRF24AP2-USBQ32-T module is compatible with other Nordic Semiconductor products, such as the nRF52 and nRF53 series of microcontrollers. It can be used as a wireless connectivity solution for these devices.
  • The power consumption of the NRF24AP2-USBQ32-T module varies depending on the mode of operation. In transmit mode, it consumes around 12.5mA, and in receive mode, it consumes around 13.5mA. In standby mode, it consumes around 2.5mA.
  • Yes, the NRF24AP2-USBQ32-T module supports mesh networking applications. It can be used to create a mesh network with multiple nodes, allowing for reliable and efficient data transmission.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NRF24AP2-USBQ32-T Overview

Use the download button to access the NRF24AP2-USBQ32-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NRF24, or try a keyword search, such as Other Telecom ICs
