Part Image

NRF24L01 - Nordic Semiconductor

Description: RF Transceiver 1.9-3.6V 2.4GHz XCVR ENHNCD SHCKBRST

Download ECAD Model

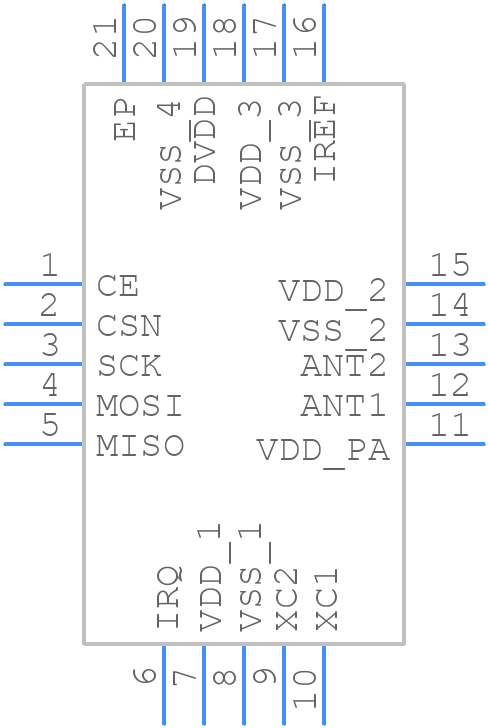

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

NRF24L01 - Nordic Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - Saw QFN20 (4x4 mm)
click to zoom

3D Models

NRF24L01 - Nordic Semiconductor  - 3D model - Quad Flat No-Lead - Saw QFN20 (4x4 mm)
click to zoom

NRF24L01 Details

  • Manufacturer Part Number:

    NRF24L01

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Part Package Code:

    QFN

  • Package Description:

    HVQCCN,

  • Pin Count:

    20

  • Reach Compliance Code:

    compliant

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Nordic Semiconductor

  • Risk Rank:

    5.46

  • Samacsys Modified On:

    2023-03-07 16:10:32

  • JESD-30 Code:

    S-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.95 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    RF AND BASEBAND CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

Trust Checks

Expert Contribution
System Verified
Community Approved
Sponsored

NRF24L01 Overview

Use the download button to access the NRF24L01 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NRF24, or try a keyword search, such as Cellular Telephone Circuits
