NRF52805-CAAA-B-R7 - Nordic Semiconductor

Description: IC RF TxRx + MCU Bluetooth Bluetooth v5.0 2.4GHz 28-UFBGA, WLCSP

Download NRF52805-CAAA-B-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

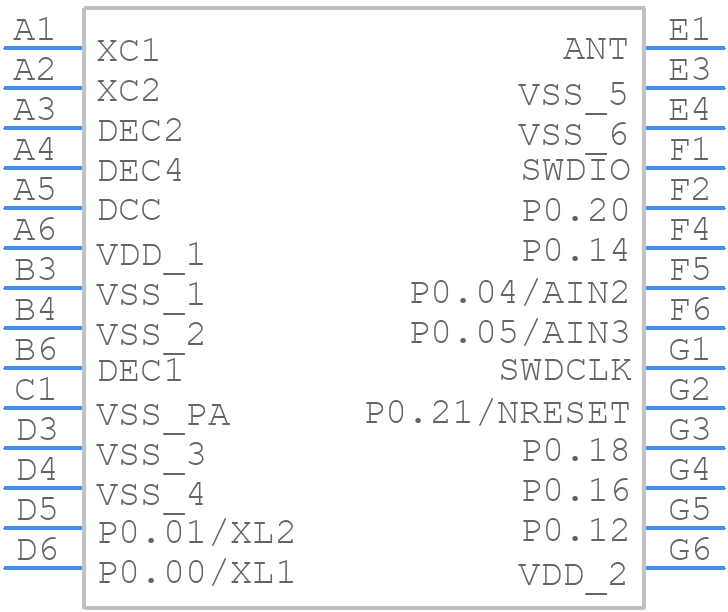

NRF52805-CAAA-B-R7 - Nordic Semiconductor - PCB symbol
click to zoom
PCB Footprints
NRF52805-CAAA-B-R7 - Nordic Semiconductor PCB footprint - Other - Other - WLCSP 2.482 x2.464 mm
click to zoom
3D Models
NRF52805-CAAA-B-R7 - Nordic Semiconductor - 3D model - Other - WLCSP 2.482 x2.464 mm
click to zoom

NRF52805-CAAA-B-R7 Details

  • Manufacturer Part Number:

    NRF52805-CAAA-B-R7

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    WLCSP-28

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Nordic Semiconductor

  • JESD-30 Code:

    R-PBGA-B28

  • Length:

    2.482 mm

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA28,6X7,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.535 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2.464 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

NRF52805-CAAA-B-R7 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for NRF52805-CAAA-B-R7 is -40°C to 85°C.
  • The NFC tag functionality on NRF52805-CAAA-B-R7 can be configured using the Nordic UART (NUART) interface. You need to use the nRF5 SDK and the NFC tag library to configure the NFC tag functionality.
  • Yes, NRF52805-CAAA-B-R7 supports Bluetooth 5.0, including 2Mbps and 1Mbps data rates, as well as Long Range mode.
  • The maximum transmit power of NRF52805-CAAA-B-R7 is +4 dBm.
  • Secure boot on NRF52805-CAAA-B-R7 can be implemented using the Nordic Secure Bootloader (NSB) and the nRF5 SDK. You need to generate a secure boot image and flash it to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NRF52805-CAAA-B-R7 Overview

Use the download button to access the NRF52805-CAAA-B-R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NRF52, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
