nRF52805-CAAA-R - Nordic Semiconductor

Description: IC RF TxRx + MCU Bluetooth Bluetooth v5.2 2.4GHz 28-UFBGA, WLCSP

Download nRF52805-CAAA-R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

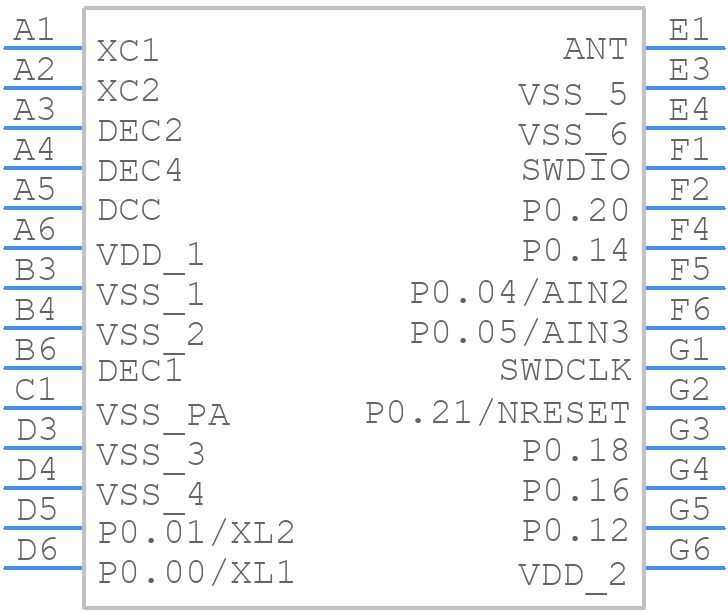

nRF52805-CAAA-R - Nordic Semiconductor - PCB symbol
click to zoom
PCB Footprints
nRF52805-CAAA-R - Nordic Semiconductor PCB footprint - Other - Other - 28-WLCSP 2.482x2.464mm
click to zoom
3D Models
nRF52805-CAAA-R - Nordic Semiconductor - 3D model - Other - 28-WLCSP 2.482x2.464mm
click to zoom

nRF52805-CAAA-R Details

  • Manufacturer Part Number:

    NRF52805-CAAA-R

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    WLCSP-28

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Nordic Semiconductor

  • YTEOL:

    3

  • JESD-30 Code:

    R-PBGA-B28

  • Length:

    2.482 mm

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA28,6X7,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    0.535 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Width:

    2.464 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

nRF52805-CAAA-R Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the NRF52805-CAAA-R is -40°C to 85°C.
  • The NFC tag functionality on the NRF52805-CAAA-R can be configured using the Nordic UART (NUART) interface. Refer to the Nordic Semiconductor documentation for specific configuration details.
  • The maximum transmit power of the NRF52805-CAAA-R is +4 dBm.
  • Yes, the NRF52805-CAAA-R is compatible with Bluetooth 5.0 and can be used for Bluetooth 5.0 applications.
  • Secure boot on the NRF52805-CAAA-R can be implemented using the Nordic Semiconductor's Secure Bootloader. Refer to the Nordic Semiconductor documentation for specific implementation details.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

nRF52805-CAAA-R Overview

Use the download button to access the nRF52805-CAAA-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like nRF52, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
